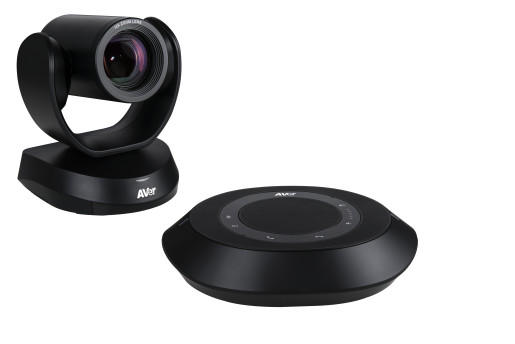

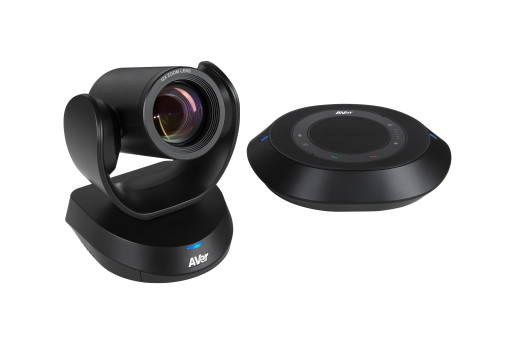

Aver, VC520Pro Teams Edition

Brand
Aver
SKU
10335186
MPN
61U0100000AP
AVer VC520 Pro Teams video conferencing system 2 MP Ethernet LAN Group video conferencing system
Please log in or create an account with Exertis to buy or see full details of our product
Professional conferencing system for mid-to-large rooms
The VC520 Pro is equipped with a 12X optical zoom and daisy-chain speakerphone that deliver a lifelike audiovisual experience. With 1080p HD quality, Sony True WDR, and IP-based management features, the VC520 Pro is the professional conferencing system your enterprise needs.

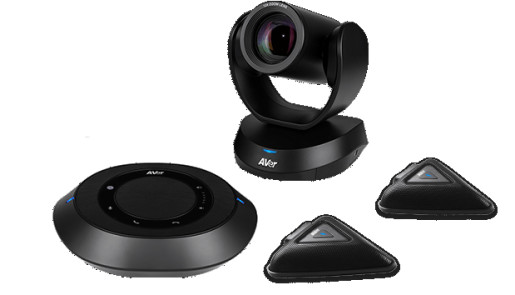

VC520 Pro Microsoft Teams Rooms Edition

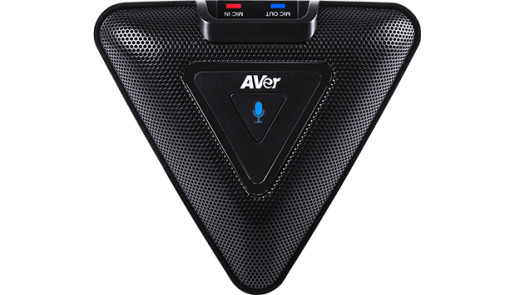

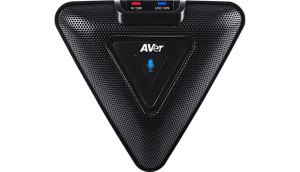

This exclusive version of the VC520 Pro speakerphone lets you start meetings instantly with an embedded Microsoft Teams button* and LED status indicator. Just touch the button to enter a meeting and check the call status. Also, you can enjoy an always-clear audio experience via the two expansion microphones that come with this special edition system.
* Only available for the VC520 Pro Microsoft Teams Rooms edition, which includes a camera, a speakerphone, and two expansion microphones.

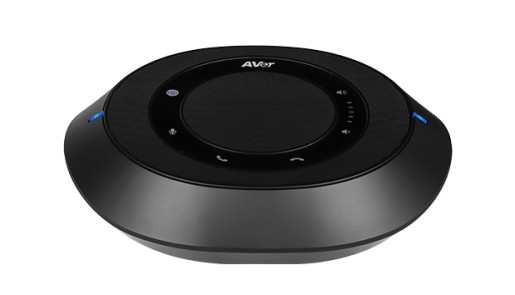

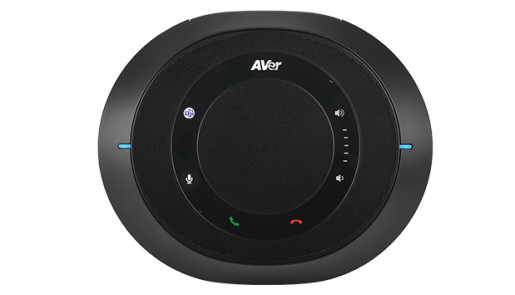

Perfect Audio for Professional Conferencing
Experience lifelike audio in various sizes of meeting rooms with the VC520 Pro. The speakerphone’s pickup range is up to 6 meters in diameter, or you can daisy-chain two additional speakerphones to fit into your conference room configuration. Touch controls make it easy to adjust or mute the volume, and echo cancellation ensures a steady audio experience. You can also connect extra microphones for ultra-clear voice pickup.

SmartFrame Captures Everyone in Seconds
Improve productivity by starting meetings instantly. The VC520 Pro processes facial recognition to capture everyone on-screen in seconds and automatically re-frames whenever someone walks in or out of the room.

Professional Clarity with an 18X Total Zoom
Show every detail precisely and smoothly to enhance communication. The VC520 Pro is embedded with a 12X true optical zoom and multi-coated auto-focus optics to present complex product details in full HD 1080p quality.

Hold Meetings Anywhere with True WDR
Maintain constant clarity in high-contrast backlight environments. The VC520 Pro’s embedded Sony sensor provides True WDR up to 120dB, controling the exposure and light values of pixels in any lighting.
True WDR

Video Streaming and Remote Control via IP-Based Management
The VC520 Pro features advanced centralized management through the Chrome browser. Remotely control the camera and share on Facebook or YouTube with H.264 and AAC-LC RTSP/RTMP streaming in 1080p at 60fps via USB 3.1.
VC520Pro Teams Edition
Technical Reference
Product Summary
Brand
Aver
SKU
10335186
Manu Part #
61U0100000AP
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
20 - 80%
Network
Ethernet LAN
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
Supported network protocols
RTSP, RTMP
Power
AC input voltage
100-240 V
AC input frequency
50/60 Hz
DC input voltage
12 V
Current
5 A
Packaging content
Cables included
AC, AUX, LAN (RJ-45), USB
AC adapter included
Y
Handheld remote control
Y
Mounting kit
Y
Camera included
Y
Power cable length
1.8 m
Networking cable length
10 m
Weight & dimensions
Package weight
5.4 kg
Package width
259 mm
Package depth
259 mm
Package height
349 mm
Camera dimensions (WxDxH)
142.7 x 153 x 182 mm
Microphone dimensions (WxHxD)
220 x 181.5 x 49.5 mm
Audio
Speaker power
6 W
Noise reduction
Y
Ports & interfaces
USB connector type
USB Type-B
Headphone outputs
1
Video
Supported graphics resolutions
320 x 240,480 x 360,640 x 360,640 x 480 (VGA),800 x 448,848 x 480,960 x 540,1280 x 720 (HD 720),1600 x 900,1920 x 1080 (HD 1080)
Video formats supported
H.264,M-JPEG,YUV
HD type
Full HD
Maximum frame rate
60 fps
Megapixel
2 MP
Optical zoom
12x
Microphone
Microphone sensitivity
-34 dB
Microphone frequency
120 - 16000 Hz
Microphone colour
Black
Microphone Total Harmonic Distortion (THD)
1%
Technical details
Product type
Group video conferencing system
Wall mountable
Y
Pan range
-170 - 170°
Tilt angle range
-30 - 90°
Tripod mounting supported
Y
Camera
Field of view (FOV) angle
82°
White balance
Auto, Manual
Aperture range (F-F)
1.8 - 2.8
Focal length range
3.9-47.3 mm
Wide Dynamic Range (WDR)
Y
Back Light Compensation (BLC)
Y
Number of camera presets
10
General
Cable lock slot type
Kensington
Cable lock slot
Y
