AOpen, DE3450S Full system with N3350 2G1 W10

Brand
AOpen
SKU
10277407
MPN
491.DEH00.0040

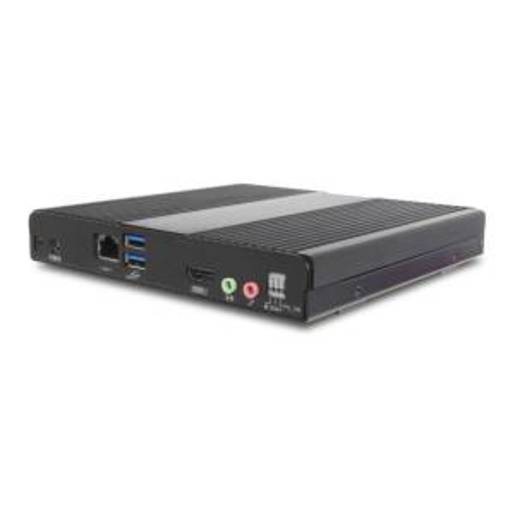

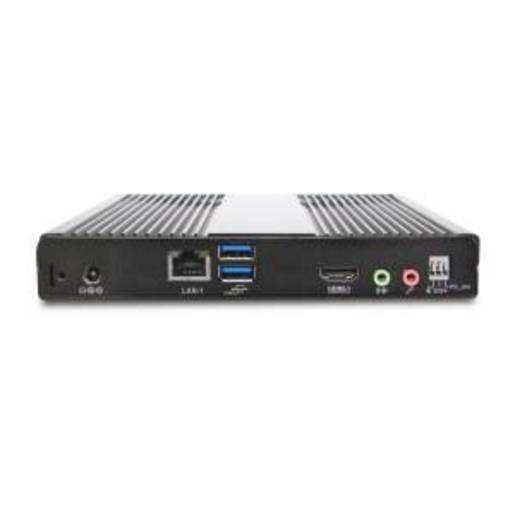

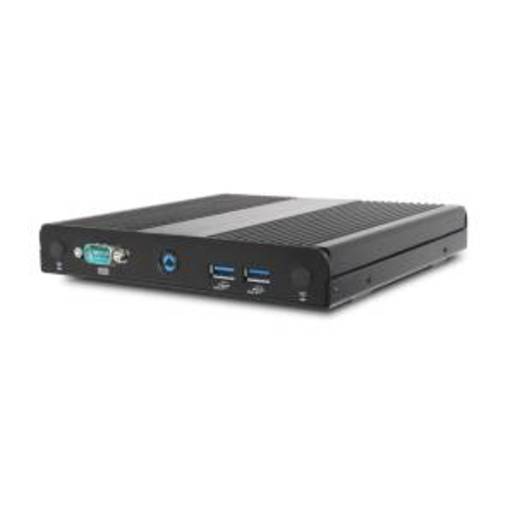

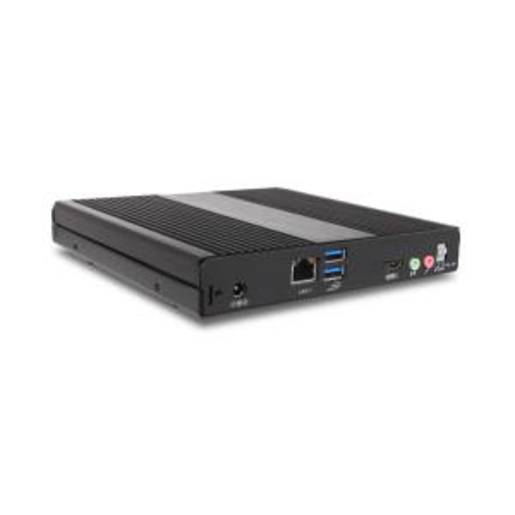

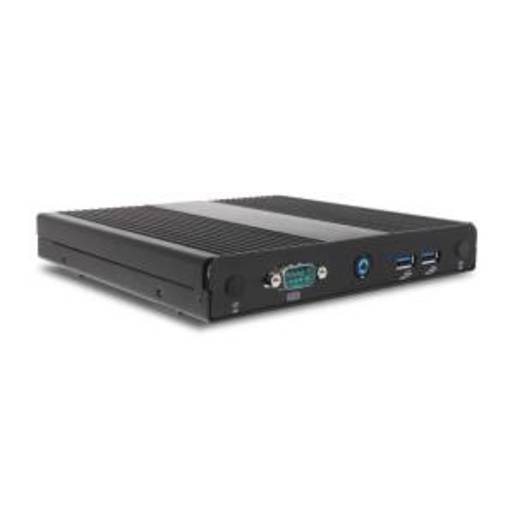

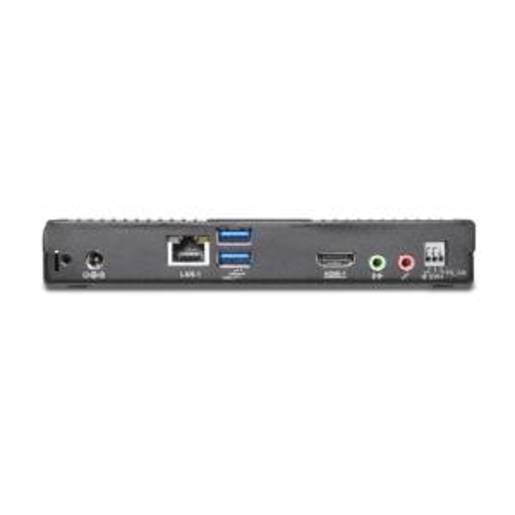

AOpen Digital Engine DE3450S Ultra Slim Media Player Dual-Core (N3350) 1.1GHz 4GB (2x2GB) LAN Windows 10 (Intel HD 500)
Please log in or create an account with Exertis to buy or see full details of our product
  • Supports Ultra HD (4K@60p) resolution and HEVC/H.265 & VP9 high-definition video playback
  • HDMI 2.0
  • Support TPM2.0, the use of validated encryption key brings extra security to your device
  • Watchdog timer for device monitoring and control
Based on the reliable Intel Dual Core Apollo Lake Processor N3350 and designed for dusty and/or commercial environments. This computing device is able to run UHD playback on one screen. This media player is capable of driving UHD (4k) content. With a resolution that goes up to 3840x2160 pixels your content will be close to perfect. This feature marks the players that are capable of delivering content that is fluent and stutter free in UHD (4k). This media player is capable of driving UHD (4k) content. With a resolution that goes up to 3840x2160 pixels your content will be close to perfect. This feature marks the players that are capable of delivering content that is fluent and stutter free in UHD (4k). The TPM is a dedicated micro controller, designed to secure hardware through integrated cryptographic keys. This means the data on your hard drive will be encrypted to ensure your data is safe, even when your device gets stolen. These units support native hardware decoding for modern codecs like the HEVC/H265 10 bit. Offloading the CPU, the GPU handles the decoding of the video. This creates a fluent playback up to 60fps. With the Watchdog timer, your solution is running at the highest uptime possible. When the Watchdog timer is included in your critical application, the Watchdog is the ultimate failsafe. As soon as the hardware timer reaches zero, the system will reboot.
DE3450S Full system with N3350 2G1 W10
Technical Reference
Product Summary
Brand
AOpen
SKU
10277407
Manu Part #
491.DEH00.0040
Features
Supports Ultra HD (4K@60p) resolution and HEVC/H.265 & VP9 high-definition video playback
HDMI 2.0
Support TPM2.0, the use of validated encryption key brings extra security to your device
Watchdog timer for device monitoring and control
General
Product Type
Media Player
Product Family
Digital Engine
PartNo
491.DEH00.0040
Operating Temperature
0 to 45
Operating Humidity
0 to 95
USB Port(s)
2 x USB 3.0 (Front) • 2 x USB 3.0 (Rear)
Electrical Voltage
100 to 240
Memory Type(s)
DDR3L
Processor Number
N3350
HDMI Port(s)
1 x HDMI 2.0
Network Card
Realtek RTL8111H
Network Card Data Link Protocol
Ethernet
Solid State Storage Type
M.2
Integrated Graphics Device
Intel HD Graphic 500
Width
16.6
Height
2.5
Depth
15.8
Maximum RAM
8192
L2 Cache
2
Turbo/Boost Speed
2.4
Memory Bus Speed
1333
Physical
Case Colour
Black
Security Locking Mechanics
Kensington Lock Slot
Interfaces/Ports
RJ-45 Ports
1 x RJ-45
Audio Line Out Ports
1 x Audio Line Out
Microphone In Port
1 x Microphone In
Serial Ports
1 x RS232 DB9
DC Power
1 x DC In
Network
Wired Network
Yes
Memory
Memory Slot
2 x SODIMM
Display
Display Included
No
Electrical
Cooling System
Fanless
Electrical Power Available
40
Sound
Sound Card
Realtek HD Audio ALC269Q
Motherboard
Expansion Slots
3
Maximum Bus Speed
1866
