LG, XS2E 75" High Bright Display

Brand
LG
SKU
10253130
MPN
75XS2E
LG 75XS2E signage display Digital signage flat panel 190.5 cm (75") LED 4K Ultra HD Black Web OS
Please log in or create an account with Exertis to buy or see full details of our product
  • Brightness : 2,500 cd/m² (Typ.)
  • Life Time : 50,000 hours
  • Bezel Width: 11.8 mm(Even, Off-Bezel)
  • Depth : 116mm
High Brightness
High Brightness

With a great brightness of 2,500 cd/㎡ , XS series clearly delivers contents and attracts public attention, which is the ultimate display for outdoor visibility.

Visible with Polarized Sunglasses
Visible with Polarized Sunglasses

QWP(Quarter Wave Plate) enables clear visibility even when the viewer is wearing polarized sunglasses.

Fan-less Design
Fan-less Design

By eliminating the need for a cooling fan, we have made the XS series an ideal choice for the in-window environment. Its operating noise level is under 25dB, which is quieter than that of daily conversation.

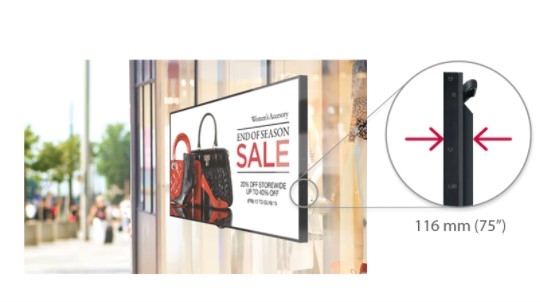

Slim Design
Slim Design

Thanks to its thin depth, the XS series takes up less space, which leads to space efficiency in an in-window environment.

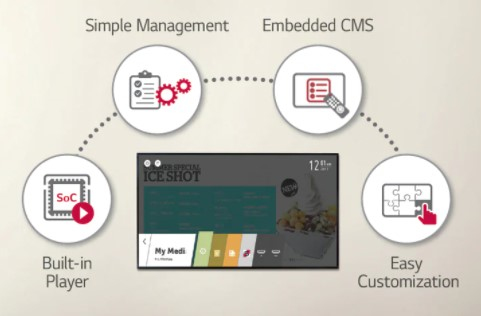

webOS Smart Platform
webOS Smart Platform

Quad Core SoC(System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.

Smart Brightness Control
Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

XS2E 75" High Bright Display
Technical Reference
Product Summary
Brand
LG
SKU
10253130
Manu Part #
75XS2E
Features
Brightness : 2,500 cd/m² (Typ.)
Life Time : 50,000 hours
Bezel Width: 11.8 mm(Even, Off-Bezel)
Depth : 116mm
Interface: HDMI(2)/ DP/ DVI-D/ RJ45/ USB/ SD Card/ IR/ RS232C/ External Speaker Out
Design
Product design
Digital signage flat panel
Placement supported
Indoor
Orientation
Horizontal/Vertical
Product colour
Black
VESA mounting
Y
Panel mounting interface
600 x 400 mm
Bezel width (bottom)
1.18 cm
Bezel width (side)
1.18 cm
Bezel width (top)
1.18 cm
Display
Display diagonal
190.5 cm (75")
Display technology
LED
Display resolution
3840 x 2160 pixels
Display brightness
2500 cd/m²
HD type
4K Ultra HD
Touchscreen
N
Native aspect ratio
16:9
Contrast ratio (typical)
1200:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Panel life
50000 h
Ports & interfaces
DVI port
Y
USB port
Y
Ethernet LAN
Y
PC Audio in
Y
RS-232C
Y
Card reader integrated
Y
Compatible memory cards
SD
HDMI ports quantity
2
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
2
USB ports quantity
1
DVI-D ports quantity
1
HDMI input ports quantity
2
Remote (IR) input
1
DisplayPorts in
1
DisplayPorts out
1
Audio
Built-in speaker(s)
N
Performance
Purpose
Retail
Ambient light sensor
Y
Operating hours (hours/days)
24/7
Automatic brightness control
Y
Power
Power consumption (typical)
585 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Computer system
Computer system
Y
Operating system installed
Web OS
Processor cores
4
Weight & dimensions
Width
1675.2 mm
Depth
116 mm
Height
953.6 mm
Weight
43 kg
Packaging data
Package width
1816 mm
Package depth
285 mm
Package height
1106 mm
Package weight
52.2 kg
Packaging content
Remote control included
Y
Cables included
AC, HDMI
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 85%
Other features
Manual
Y
