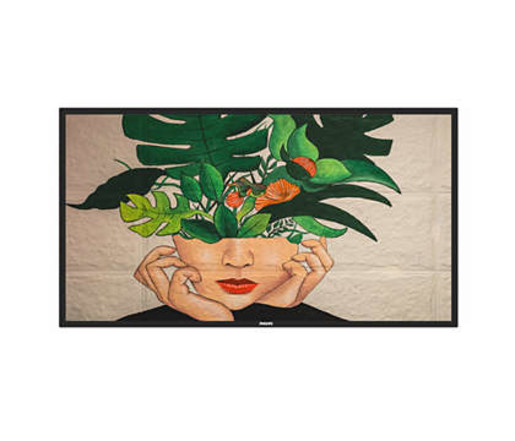

Philips, "86BDL4510D 86"" UHD 4K 24/7 Display "

Brand
Philips
SKU
10329031
MPN
86BDL4510D/00
Philips 86BDL4510D/00, 86BDL4510D/00, 4K Ultra HD, 2.17 m (85.6"), 3840 x 2160 pixels, Public Displays
Please log in or create an account with Exertis to buy or see full details of our product
Say more
Amaze your guests with a smarter, faster, signage display. With integrated WiFi and designed for running Android apps, it's the next evolution in signage solutions.

FailOver ensures that content is always playing
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.

SmartPower for energy saving
The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Operate, monitor and maintain with CMND and Control
Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

Schedule what you want, when you want with SmartPlayer
Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.
"86BDL4510D 86"" UHD 4K 24/7 Display "
Technical Reference
Product Summary
Brand
Philips
SKU
10329031
Manu Part #
86BDL4510D/00
Design
Product colour
Black
VESA mounting
Y
Panel mounting interface
600 x 400 mm
Product design
Digital signage flat panel
Bezel width (bottom)
1.55 cm
Weight & dimensions
Width
1929 mm
Depth
91.8 mm
Height
1100 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
5 - 95%
Display
Display diagonal
2.17 m (85.6")
Display resolution
3840 x 2160 pixels
HD type
4K Ultra HD
Native aspect ratio
16:9
Display technology
IPS
Contrast ratio (typical)
1200:1
Display brightness
500 cd/m²
Display number of colours
1.07 billion colours
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Response time
8 ms
Pixel pitch
0.4935 x 0.4935 mm
Display diagonal (metric)
217.4 cm
Contrast ratio (dynamic)
500000:1
Power
AC input voltage
100-240 V
Power consumption (typical)
290 W
AC input frequency
50-60 Hz
Power consumption (standby)
0.5 W
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
350 kWh
Energy efficiency scale
A to G
Packaging content
Cables included
AC, IR sensor, RS-232, USB
Batteries included
Y
Remote control included
Y
Ports & interfaces
DVI port
Y
USB port
Y
Wi-Fi
Y
Ethernet LAN
Y
RS-232C
Y
RS-232 interface
Y
OPS module slot
Y
HDMI ports quantity
4
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
2
HDMI version
2
USB ports quantity
2
USB version
2
HDMI input ports quantity
3
Remote (IR) input
1
DisplayPorts in
1
DVI-I ports quantity
1
DisplayPorts out
1
HDMI output ports quantity
1
Remote (IR) output
1
Audio
RMS rated power
10 W
Built-in speaker(s)
Y
Number of built-in speakers
2
Performance
Mean time between failures (MTBF)
50000 h
On Screen Display (OSD) languages
Arabic, Simplified Chinese, Traditional Chinese, Danish, German, Dutch, English, Finnish, French, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Computer system
Audio formats supported
AAC,HE-AAC
Video formats supported
H.263,H.264,H.265,MPEG,VP8
Image formats supported
BMP, JPEG, PNG
