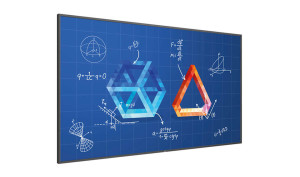

Philips, 86BDL3552T 86in UHD Edu Touch Display

Brand
Philips
SKU
10321353
MPN
86BDL3552T/00
Philips Signage Solutions 86BDL3552T/00, 86BDL3552T/00, 4K Ultra HD, 2.17 m (85.6"), 3840 x 2160 pixels, Public Displays
Please log in or create an account with Exertis to buy or see full details of our product
  • Multi-touch technology capable of 20 touchpoints
  • Advanced HE IR touch with smaller, shallower bezels
  • Operate, monitor and maintain with CMND and Control
  • Anti-glare toughened glass
Interactive classroom display
Maximise engagement and inspire collaboration with an interactive Philips T-Line display. Featuring anti-glare toughened glass, these Android-powered displays are made to withstand heavy daily usage and feature up to 20 touchpoints

OPS slot allows for PC embedding without cabling
Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Operate, monitor and maintain with CMND and Control
Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

Multi-touch technology capable of 20 touchpoints
Create a memorable interactive experience with up to 20 touchpoints at the same time. Perfect for collaborative and competitive applications, this display connects your audience with any content - making it ideal for education, public venues, corporate, hospitality and retail settings. The touch panel is HID compliant, providing true plug-and-play operation.

Android SoC processor. Native and web apps
Control your display via an Internet connection. Android-powered Philips Professional Displays are optimised for native Android apps and you can install web apps directly to the display too. A new Android OS ensures the software is kept secure and stays up to date with the latest specification for longer.

Whiteboard mode built in
Inspire agile collaboration with whiteboard mode. Simply activate this feature to turn your display into a blank canvas that can be drawn on by multiple users by hand or with dedicated display markers. Everything on the screen can then be captured for easy printing or file sharing.

Wireless screen sharing and advanced collaboration
Display four feeds on one screen. Wireless screen sharing allows you to connect up to 32 devices at the same time for quick content switching when you need it. Use your existing Wi-Fi network to instantly and securely connect devices or use our optional HDMI CastTo dongles to cast directly to the screen without needing to connect to your secured/protected network.
86BDL3552T 86in UHD Edu Touch Display
Technical Reference
Product Summary
Brand
Philips
SKU
10321353
Manu Part #
86BDL3552T/00
Features
Multi-touch technology capable of 20 touchpoints
Advanced HE IR touch with smaller, shallower bezels
Operate, monitor and maintain with CMND and Control
Anti-glare toughened glass
Android SoC processor. Native and web apps
OPS slot allows for PC embedding without cabling
Whiteboard mode built in
Wireless screen sharing and advanced collaboration
Design
Product colour
Black
VESA mounting
Y
Placement supported
Indoor
Panel mounting interface
600 x 400 mm
Product design
Interactive flat panel
Orientation
Horizontal/Vertical
Bezel width (bottom)
1.63 cm
Bezel width (top)
1.63 cm
Bezel width (side)
1.63 cm
Weight & dimensions
Width
1961 mm
Depth
180.4 mm
Height
1132.3 mm
Weight
71 kg
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Display
Display diagonal
2.17 m (85.6")
Display resolution
3840 x 2160 pixels
HD type
4K Ultra HD
Native aspect ratio
16:9
Touchscreen
Y
Contrast ratio (typical)
1200:1
Display brightness
350 cd/m²
Display number of colours
1.073 billion colours
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Response time
8 ms
Pixel pitch
0.4935 x 0.4935 mm
Display diagonal (metric)
217.4 cm
Contrast ratio (dynamic)
500000:1
Touch technology
Multi-touch
Number of simultaneous touchpoints
20
Power
AC input voltage
100-240 V
Power consumption (typical)
337.4 W
AC input frequency
50-60 Hz
Power consumption (standby)
0.5 W
Packaging content
Cables included
AC, HDMI, IR sensor, RS-232, USB
Batteries included
Y
Remote control included
Y
Technical details
Sustainability certificates
RoHS
Ports & interfaces
DVI port
Y
USB port
Y
Wi-Fi
Y
Ethernet LAN
Y
PC Audio in
Y
Card reader integrated
Y
RS-232 interface
Y
Compatible memory cards
MicroSD (TransFlash)
HDMI ports quantity
4
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Audio (L/R) out
1
HDMI input ports quantity
4
VGA (D-Sub) input ports
1
Certificates
Certification
CE UL/cUL CCC BSMI CB VCCI EAC FCC B PSB
Audio
RMS rated power
40 W
Built-in speaker(s)
Y
Number of built-in speakers
2
Performance
Mean time between failures (MTBF)
50000 h
Purpose
Universal
On Screen Display (OSD)
Y
On Screen Display (OSD) languages
Arabic, Simplified Chinese, Traditional Chinese, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Picture-in-Picture
Y
Number of OSD languages
18
Computer system
Computer system
Y
Audio formats supported
AAC,M4A,MP3,WMA
Video formats supported
ASF,AVI,DAT,FLV,MKV,MP4,MPEG,MPG,TS,VOB,WEBM,WMV
Operating system installed
Android 9.0
Image formats supported
BMP, JPEG, JPG, PNG
Internal memory
4 GB
Built-in processor
Y
Internal storage capacity
32 GB
Processor model
MTK5680
