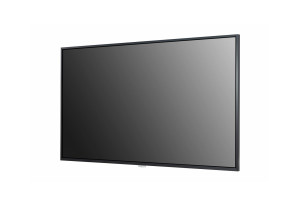

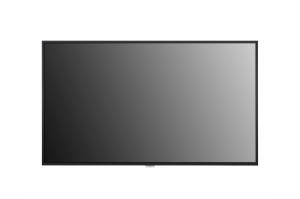

LG, UH5F-H 65" Large Format Display SOC

Brand
LG
SKU
10325554
MPN
65UH5F-H
LG 65UH5F-H, 4K Ultra HD, 165.1 cm (65"), 3840 x 2160 pixels, Public Display
Please log in or create an account with Exertis to buy or see full details of our product
  • Crestron-certified compatibility with AV control system
  • Vivid colour and wide viewing angle with IPS panel
  • Narrow bezel : 9.9 mm (T/R/L), 14.4 mm (B)
  • Slim Depth : 39.9 mm
Clear View with Non-glare Coating
Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

ULTRA HD Resolution
With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.

Narrow Bezel & Slim Depth
This series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

Detachable Logo and Built-in Speaker
This series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

30° Tilting Installation
When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the installation with 30 degrees of tilt* is supported.

Auto Screen Rotatio
This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.

Fine Adjustment
This series is equipped with a "horizontal sensor" which shows users how the device is tilt, so that it can be precisely installed.

High-Performance with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

Compatible with AV Control System
The UH5F-H series has been certified Crestron Connected for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.

Compatible with Video Conference System
For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
UH5F-H 65" Large Format Display SOC
Technical Reference
Product Summary
Brand
LG
SKU
10325554
Manu Part #
65UH5F-H
Features
Crestron-certified compatibility with AV control system
Vivid colour and wide viewing angle with IPS panel
Narrow bezel : 9.9 mm (T/R/L), 14.4 mm (B)
Slim Depth : 39.9 mm
Interface : HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
Built-in Content Management System and speaker / 30º Tilting Installation
Design
Product design
Digital signage flat panel
Placement supported
Indoor
Orientation
Horizontal/Vertical
Product colour
Black
VESA mounting
Y
Panel mounting interface
300 x 300 mm
Bezel width (bottom)
1.44 cm
Bezel width (side)
9.9 mm
Bezel width (top)
9.9 mm
Display
Display diagonal
165.1 cm (65")
Display technology
IPS
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Response time
8 ms
Contrast ratio (typical)
1100:1
Contrast ratio (dynamic)
1000000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Ports & interfaces
HDMI version
2.2/1.4
DVI port
Y
USB port
Y
Ethernet LAN
Y
RS-232C
Y
Infrared data port
Y
OPS module slot
Y
HDMI ports quantity
3
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
2
USB version
2
USB ports quantity
1
DVI-D ports quantity
1
Audio (L/R) out
1
HDMI input ports quantity
3
Audio (L/R) in
1
DisplayPorts in
1
DisplayPorts out
1
Audio
Built-in speaker(s)
Y
Performance
Purpose
Universal
On Screen Display (OSD)
Y
Operating hours (hours/days)
24/7
HDCP
Y
International Protection (IP) code
IP5X
HDCP version
1.4/2.2
Power
Power consumption (typical)
120 W
Power consumption (standby)
0.5 W
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
133 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Heat dissipation
563 BTU/h
Energy efficiency scale
A to G
Computer system
Computer system
Y
Built-in processor
Y
Operating system installed
Web OS
Processor cores
4
Weight & dimensions
Width
1453.3 mm
Depth
39.9 mm
Height
844 mm
Weight
28.2 kg
Width (with stand)
1453.3 mm
Depth (with stand)
290 mm
Height (with stand)
893.1 mm
Packaging content
Remote control included
Y
Cables included
AC, HDMI, Phone
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%
Technical details
Sustainability certificates
ErP
Other features
Annual energy consumption
159 kWh
Energy efficiency class (old)
A+
