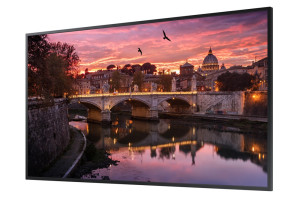

Samsung, QB43R 43" UHD Entry Level LFD

Brand
Samsung
SKU
10255667
MPN
LH43QBREBGCXEN
Samsung QB43R Digital signage flat panel 109.2 cm (43") LED Wi-Fi 350 cd/m² 4K Ultra HD Black Tizen 4.0 16/7
Please log in or create an account with Exertis to buy or see full details of our product
  • Engage customers with lifelike images through ultra high-definition resolution
  • Deliver UHD-level picture quality even with lower resolution content through innovative UHD upscaling technology and unique picture-enhancing features
  • Dynamic Crystal Color allows viewers to enjoy a wider spectrum of colors, up to one billion shades
Time to upscale your display
Samsung’s new QBR series displays cut through the clutter to deliver best-in-class UHD resolution. They feature intelligent UHD upscaling and rich flawless colours with Dynamic Crystal Colour all in a slim design.
QB43R 43" UHD Entry Level LFD
Technical Reference
Product Summary
Brand
Samsung
SKU
10255667
Manu Part #
LH43QBREBGCXEN
Features
Engage customers with lifelike images through ultra high-definition resolution
Deliver UHD-level picture quality even with lower resolution content through innovative UHD upscaling technology and unique picture-enhancing features
Dynamic Crystal Color allows viewers to enjoy a wider spectrum of colors, up to one billion shades
Design
Product design
Digital signage flat panel
Placement supported
Indoor
Product colour
Black
VESA mounting
Y
Panel mounting interface
200 x 200 mm
Bezel width (bottom)
1.12 cm
Bezel width (side)
9.2 mm
Bezel width (top)
9.2 mm
Display
LED backlighting type
Edge-LED BLU
Display diagonal
109.2 cm (43")
Display technology
LED
Display resolution
3840 x 2160 pixels
Display brightness
350 cd/m²
HD type
4K Ultra HD
Touchscreen
N
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
5000:1
Dynamic contrast ratio marketing name
Mega Contrast
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.78 million colours
Pixel pitch
0.2451 x 0.2451 mm
Active display area (W x H)
941.184 x 529.416 mm
Horizontal scan range
30 - 81 kHz
Vertical scan range
48 - 75 Hz
Colour gamut
92%
Ports & interfaces
DVI port
Y
USB port
Y
Ethernet LAN
Y
Wi-Fi
Y
PC Audio in
Y
RS-232C
Y
HDMI ports quantity
2
HDMI version
2
DVI-D ports quantity
1
USB ports quantity
2
USB version
2
Ethernet LAN (RJ-45) ports
1
Audio
Built-in speaker(s)
Y
RMS rated power
20 W
Number of built-in speakers
2
Performance
Purpose
Universal
Operating hours (hours/days)
16/7
HDCP
Y
Power
Power consumption (typical)
67 W
Power consumption (sleep)
0.5 W
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
67 kWh
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Heat dissipation
375.1 BTU/h
Energy efficiency scale
A to G
Computer system
Computer system
Y
Processor family
ARM Cortex
Processor model
A72
Processor frequency
1.7 GHz
Internal memory
2.5 GB
Internal storage capacity
8 GB
Operating system installed
Tizen 4.0
Video formats supported
AVC,AVS,H.263,H.264,HEVC,MPEG1,MPEG2,MPEG4,VC-1,VP8,VP9
Audio formats supported
AC3
Image formats supported
JPEG, PNG
Processor cores
4
Weight & dimensions
Width
967.5 mm
Depth
48.3 mm
Height
577.7 mm
Weight
10 kg
Packaging data
Package width
1095 mm
Package depth
151 mm
Package height
676 mm
Package weight
13.3 kg
Packaging content
Remote control included
Y
Batteries included
Y
Cables included
AC
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%
Certificates
Certification
60950-1, EMC B
Technical details
Sustainability certificates
ENERGY STAR
Other features
L2 cache
2048 KB
Memory clock speed
1500 MHz
User memory
4.12 GB
Quick start guide
Y
Plug and Play
Y
