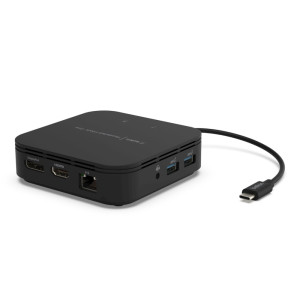

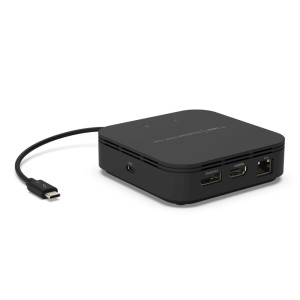

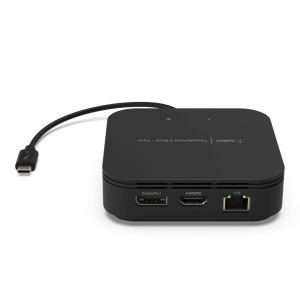

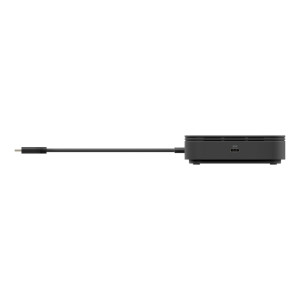

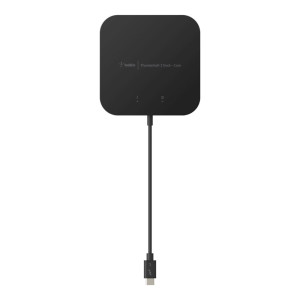

Belkin, Thunderbolt 3 Dock-Tethered USB-C Cable

Brand
Belkin
SKU
10282203
MPN
F4U110BT
Belkin Thunderbolt 3 Dock Core Wired Black
Please log in or create an account with Exertis to buy or see full details of our product
  • World's first Thunderbolt-certified dual-powered dock
  • Compatible with Thunderbolt-certified Mac and Windows laptops with a Thunderbolt 3 port
  • Connect multiple devices to your laptop through one dock, including monitors, USB stick, mouse, keyboards, internet, hard drives and more
  • Supports dual 4K UHD displays @ 60Hz
WORLD'S FIRST THUNDERBOLT™-CERTIFIED DUAL-POWERED DOCK
The Thunderbolt 3 Dock Core brings the speed, high-definition and performance of Thunderbolt technology to Mac and Windows laptops. With all the power and versatility of Thunderbolt 3, plus ports to connect multiple peripherals to a Thunderbolt laptop, this dock is a streamlined way to create an expanded, high-performing desktop through a single tethered cable.

CONNECT AN ENTIRE DESKTOP THROUGH A SINGLE CABLE
The tethered 6-inch Thunderbolt 3 cable connects multiple peripherals to your laptop, with ports for monitors, mouse, USB stick, keyboards, speakers, hard drives and more.

SIDE 1:
- 1 x DisplayPort™ 1.4 connects to high-resolution monitors/displays (for resolutions, see table below)
- 1 x HDMI (HDMI 2.0) port
- Gigabit Ethernet connection

SIDE 2:
- Tethered Thunderbolt 3 cable connects to laptop
- 1 x USB-C PD port (input)

SIDE 3:
- Audio in/out for mic and speaker support
- 1x USB-A 3.2 Gen 2(10Gbps) and 1x USB-A 2.0 ports for devices that connect via USB-A such as a USB stick, mouse, keyboard or printer

WORKS WITH THUNDERBOLT 3 DEVICES
The Thunderbolt 3 Dock Core is an ideal single-dock solution for businesses using MacBooks running Mac OS, and laptops running Windows. This broad compatibility is also ideal for shared work environments or temporary workstations where laptop users are looking for a high-performing workstation with minimal set up.

DUAL 4K MONITOR SUPPORT
Supports dual 4K 60Hz monitors for a versatile desktop configuration, via a dedicated DisplayPort and an HDMI 2.0 port. Also supports a single 5K monitor at 60Hz and capable of reaching 8K 30Hz.

Please see the table below for specific resolution capabilities for all monitor combinations.

DUAL-POWERED FUNCTIONALITY
When the Thunderbolt 3 dock is connected to a laptop, it powers peripheral devices connected to the dock without the need for a separate power cable. Keep your laptop charged by connecting its existing power supply unit (60W recommended) to the USB-C PD port on the Thunderbolt dock.

Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation or its subsidiaries.
Thunderbolt 3 Dock-Tethered USB-C Cable
Technical Reference
Product Summary
Brand
Belkin
SKU
10282203
Manu Part #
F4U110BT
Features
World's first Thunderbolt-certified dual-powered dock
Compatible with Thunderbolt-certified Mac and Windows laptops with a Thunderbolt 3 port
Connect multiple devices to your laptop through one dock, including monitors, USB stick, mouse, keyboards, internet, hard drives and more
Supports dual 4K UHD displays @ 60Hz
7 ports: 1 x Thunderbolt 3, 1 x USB-C PD, 1 x DisplayPort, 1 x HDMI, 1x USB-A 3.2 Gen 2(10Gbps), 1x USB-A 2.01, 1 x Audio in/out, 1 x Gigabit Ethernet
Supports pass-through power from a laptop to connected devices
Connect laptop’s power supply unit (60W recommended) to the dock to power the laptop
Ports & interfaces
Connectivity technology
Wired
USB Power Delivery
Y
USB Power Delivery up to
60 W
Microphone in
Y
Combo headphone/mic port
Y
Host interface
Thunderbolt 3
HDMI ports quantity
1
Headphone outputs
1
DisplayPorts quantity
1
HDMI version
2
DisplayPort version
1.4
Network
Ethernet LAN
Y
Ethernet LAN (RJ-45) ports
1
Performance
Card reader integrated
N
Maximum digital resolution
7680 x 4320 pixels
Maximum refresh rate
60 Hz
Product colour
Black
Compatibility
MacBook Pro 13" M1 (2020), MacBook Air 13" M1 (2020), Mac mini M1 (2020)
Number of displays supported
2
Power
Power source type
USB
Other features
Cable length
0.2 m
Weight & dimensions
Width
100 mm
Weight
213.8 g
Depth
100 mm
Height
30 mm
