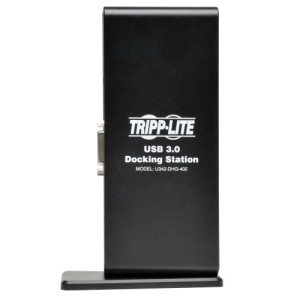

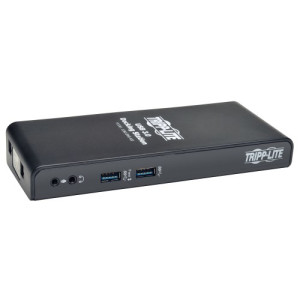

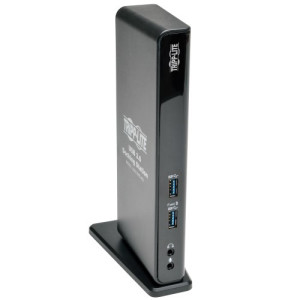

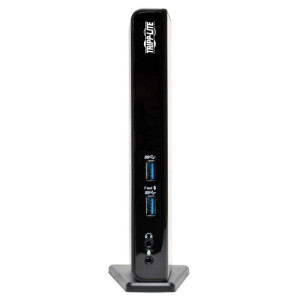

Tripp Lite, USB 3.0 Laptop Dual Head Docking Station

Brand
Tripp Lite
SKU
10044431
MPN
U342-DHG-402
Tripp Lite USB 3.0 Laptop Dual Head Docking Station - HDMI and DVI Video, Audio, USB Hub Ports and Ethernet
Please log in or create an account with Exertis to buy or see full details of our product

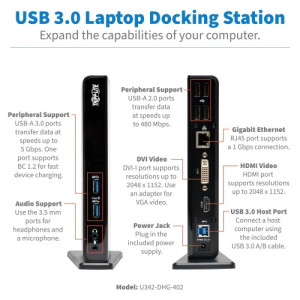

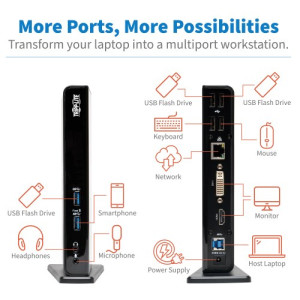

Tripp Lites U342-DHG-402, Universal USB 3.0 Laptop Docking Station, adds DVI, HDMI, Audio, Ethernet , and additional USB 3.0 and USB 2.0 ports to a laptop computer, all from a single device and over a single SuperSpeed USB 3.0 connection.The universal docking station features two independent external monitor outputs (HDMI, DVI) that can be separately used to expand or mirror your computer's main desktop. Both HDMI and DVI outputs provided by the docking station supports video resolutions up to 1920x1200 .An all-in-one solution, the universal laptop docking station combines USB 2.0 and USB 3.0 hubs, headphone and microphone audio connectors and a Gigabit Ethernet RJ45 port into a single docking station, making it the perfect accessory for enhancing laptop capability for users who need to connect and manage multiple devices at home or at the office.
- USB 3.0 is 10 times faster than USB 2.0 and supports data transfer rates of up to 5 Gbps
- Backward compatible with USB 2.0 and 1.1

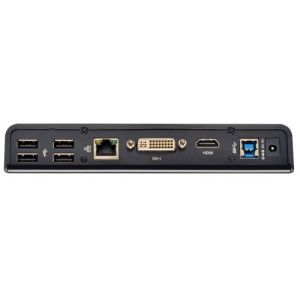

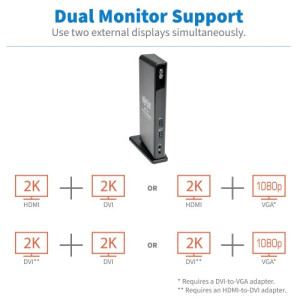

- DVI-I and HDMI ports for connection of external monitors
- A VGA monitor can be connected to the DVI-I port using a DVI-to-VGA adapter, such as a Tripp Lite P556-Series cable
- A DVI monitor can be connected to the HDMI port using an HDMI-to-DVI adapter, such as a Tripp Lite P566-Series cable
- Supports video resolutions of up to 2048 x 1152
- Automatically resumes operation from hibernation and suspend modes
- Gigabit Ethernet port supports true 10/100/1000 Mbps network speeds
- IEEE 802.3az (Energy Efficient Ethernet) compliant
USB 3.0 Laptop Dual Head Docking Station
Technical Reference
Product Summary
Brand
Tripp Lite
SKU
10044431
Manu Part #
U342-DHG-402

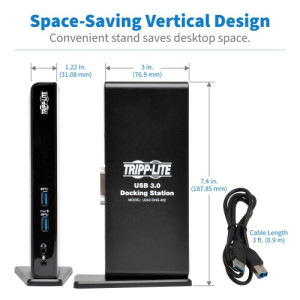

Weight & dimensions
Width
30.5 mm
Weight
590 g
Depth
76.2 mm
Height
188 mm
Packaging data
Package weight
1.04 kg
Package width
213.4 mm
Package depth
129.5 mm
Package height
104.1 mm
Software
Windows operating systems supported
Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Logistics data
Master (outer) case length
34.5 cm
Master (outer) case width
45.5 cm
Master (outer) case height
28.2 cm
Products per master (outer) case
12 pc(s)
Master (outer) case gross weight
12.7 kg
Network
Ethernet LAN
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3az
Wake-on-LAN ready
Y
Full duplex
Y
Auto MDI/MDI-X
Y
Ethernet LAN (RJ-45) ports
1
Power
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Power source type
DC
Input current
0.8 A
Output current
4 A
Output voltage
5 V

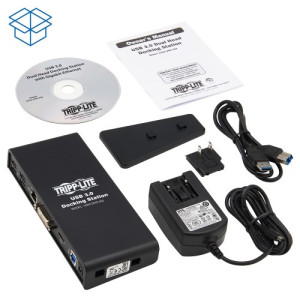

Packaging content
Cables included
USB
Manual
Y
AC adapter included
N
Drivers included
Y

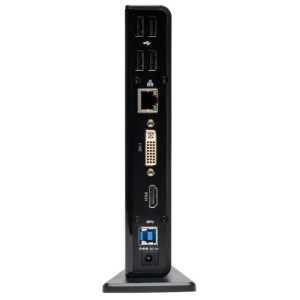

Ports & interfaces
Connectivity technology
Wired
DC-in jack
Y
Microphone in
Y
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
HDMI ports quantity
1
Headphone outputs
1
DVI-I ports quantity
1
Performance
Product colour
Black
Country of origin
China
Card reader integrated
N
Data transfer rate
5 Gbit/s
Maximum digital resolution
2048 x 1152 pixels
Sustainability
Sustainability certificates
RoHS
Technical details
Master (outer) case GTIN (EAN/UPC)
10037332182583
