Fujitsu, D738 i5-9400 8GB 256GB M.2 NVMe SSD W10P

Brand
Fujitsu
SKU
10342770
MPN
VFY:D0738P15AMGB

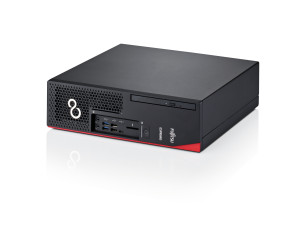

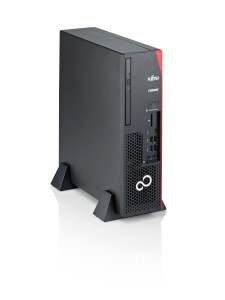

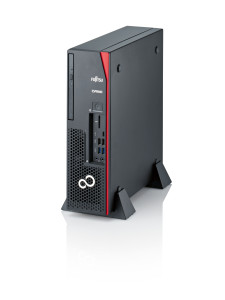

Fujitsu ESPRIMO D738/E94+ DDR4-SDRAM i5-9400 SFF 9th gen Intel® Core™ i5 8 GB 256 GB SSD Windows 10 Pro PC Black
Please log in or create an account with Exertis to buy or see full details of our product
  • Windows 10 Pro 64-bit
  • Intel Core i5-9400 (9MB Cache, 2.9GHz)
  • 8GB (2666MHz) DDR4-SDRAM & 256GB SSD
Small form factor PC in a more compact and space-saving design
The new FUJITSU ESPRIMO D738 Desktop PC provides advanced expandability features in a smaller housing. With up to 9th Gen Intel® Core™ processors, a switched monitor outlet and a power supply with 94% efficiency ensure best energy efficiency coupled with high performance. To meet the system upgrade requirements, it offers high flexibility with space for up to three mass storage drives. Optional Intel® Standard Manageability helps keep administration and rollout costs low. Optional security functions, such as the integrated cabinet lock, EraseDisk and SmartCard reader help secure your valuable business data and hardware components.

Ultimate usability
Benefit from a wide range of features which ease your workaday life
ON/OFF switch, I/Os in front for easy access control and use of the system (audio, USB Type C, optional SD card reader, SmartCard reader and ODD)

Quiet system
Pleasant working environment due to an extremely quiet system
Innovative hardware design with optimized cooling concept ensures silent operations

Always Available Office PC - stay connected and save power
Be ready for instant communication and a significantly reduced energy bill
Innovative Low Power Active Mode and energy-efficient integrated power supply

Advanced system management
Simple system administration for complex IT infrastructures
Intel® Standard manageability technology (ISM) optional and DeskView manageability suite

Low carbon footprint
Another example of Fujitsu’s commitment to environmental protection and sustainability
Low power active function and energy-efficient power supply; less cables due to onboard LED/on/off switch, USB and audio connectors; less raw material used in printed circuit board (PCB) -reduction of up to 20% in PCB when compared to a 10 liter system
D738 i5-9400 8GB 256GB M.2 NVMe SSD W10P
Technical Reference
Product Summary
Brand
Fujitsu
SKU
10342770
Manu Part #
VFY:D0738P15AMGB
Features
Windows 10 Pro 64-bit
Intel Core i5-9400 (9MB Cache, 2.9GHz)
8GB (2666MHz) DDR4-SDRAM & 256GB SSD
Design
Product colour
Black
Chassis type
SFF
Cable lock slot
Y
Placement supported
Horizontal/Vertical
Cable lock slot type
Kensington
Volume
8 L
Weight & dimensions
Width
313 mm
Weight
5 kg
Depth
286 mm
Height
89 mm
Operational conditions
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
5 - 85%
Network
Ethernet LAN
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Processor
Processor family
9th gen Intel® Core™ i5
Processor model
i5-9400
Processor frequency
2.9 GHz
Processor manufacturer
Intel
Processor boost frequency
4.1 GHz
Processor cache
9 MB
Processor cache type
Smart Cache
Processor lithography
14 nm
Thermal Design Power (TDP)
65 W
Processor socket
LGA 1151 (Socket H4)
Processor operating modes
64-bit
Processor codename
Coffee Lake
Tjunction
100 °C
System bus rate
8 GT/s
PCI Express configurations
1x8+2x4,1x16,2x8
Bus type
DMI3
Maximum internal memory supported by processor
128 GB
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2666 MHz
Memory bandwidth supported by processor (max)
41.6 GB/s
Processor cores
6
Processor threads
6
PCI Express slots version
3
Maximum number of PCI Express lanes
16
Number of processors installed
1
Software
Operating system installed
Windows 10 Pro
Operating system architecture
64-bit
Memory
Internal memory
8 GB
Internal memory type
DDR4-SDRAM
Maximum internal memory
64 GB
Memory clock speed
2666 MHz
Memory slots
4x DIMM
Storage
Storage media
SSD
Card reader integrated
Y
Total storage capacity
256 GB
SSD capacity
256 GB
SSD form factor
M.2
Number of SSDs installed
1
Graphics
On-board graphics adapter
Y
On-board graphics adapter model
Intel® UHD Graphics 630
Discrete graphics adapter
N
Discrete graphics adapter model
Not available
On-board graphics adapter base frequency
350 MHz
On-board graphics adapter dynamic frequency (max)
1050 MHz
Maximum on-board graphics adapter memory
64 GB
On-board graphics adapter ID
0X3E98/x92
On-board graphics adapter family
Intel® UHD Graphics
On-board graphics adapter DirectX version
12
On-board graphics adapter OpenGL version
4.5
Number of displays supported (on-board graphics)
3
Processor special features
Intel Virtualization Technology (VT-x)
Y
Intel Virtualization Technology for Directed I/O (VT-d)
Y
Intel VT-x with Extended Page Tables (EPT)
Y
Embedded options available
N
Intel Trusted Execution Technology
N
Idle States
Y
Intel Software Guard Extensions (Intel SGX)
Y
Intel 64
Y
Enhanced Intel SpeedStep Technology
Y
Intel Stable Image Platform Program (SIPP)
N
Execute Disable Bit
Y
Intel® AES New Instructions (Intel® AES-NI)
Y
Intel® Hyper Threading Technology (Intel® HT Technology)
N
Intel® OS Guard
Y
Intel® Secure Key
Y
Intel TSX-NI
N
Intel® Quick Sync Video Technology
Y
Intel Clear Video Technology
Y
Intel® Identity Protection Technology (Intel® IPT)
Y
Thermal Monitoring Technologies
Y
Processor package size
37.5 x 37.5 mm
Intel® Clear Video HD Technology (Intel® CVT HD)
Y
Supported instruction sets
AVX 2.0,SSE4.1,SSE4.2
Intel® InTru™ 3D Technology
Y
Intel Enhanced Halt State
Y
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Y
Scalability
1S
Thermal solution specification
PCG 2015C
CPU configuration (max)
1
Processor ARK ID
134898
Intel® Turbo Boost Technology
2
Intel Secure Key Technology version
1
Intel Identity Protection Technology version
1
Intel TSX-NI version
0
Intel Stable Image Platform Program (SIPP) version
0
Ports & interfaces
DVI port
Y
DC-in jack
Y
Microphone in
Y
Line-out
Y
Line-in
Y
Ethernet LAN (RJ-45) ports
1
Headphone outputs
1
DisplayPorts quantity
2
PS/2 ports quantity
2
Performance
Product type
PC
Motherboard chipset
Intel Q370
Audio chip
Realtek ALC671
Audio system
High Definition Audio
Password protection
Y
Password protection type
BIOS, Supervisor, User
Audio output channels
5.1 channels
Sustainability
Sustainability certificates
RoHS
Power
Power supply
280 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50 - 60 Hz
Packaging content
Display included
N
