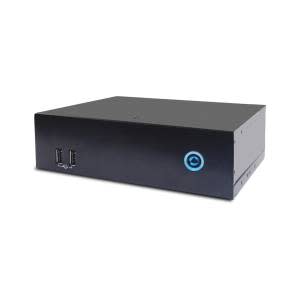

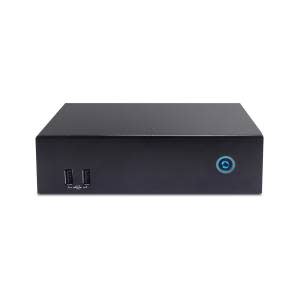

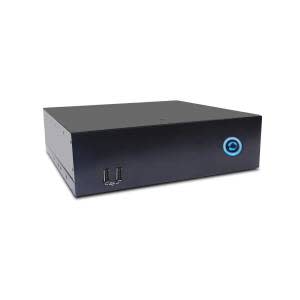

AOpen, DE6340 V1807B 128G 4Gx2 W10

Brand
AOpen
SKU
10242596
MPN
91.DEL00.E0B0
AOpen Digital Engine DE6340 Full System Media Player AMD Ryzen (V1807B) 3.4GHz 8GB (2x4GB) 128GB (SSD) LAN Windows 10 (AMD Radeon Vega 11 Graphics)
Please log in or create an account with Exertis to buy or see full details of our product
  • AMD V1000 excellent CPU performance
  • 4 x HDMI 2.0 output for Ultra HD (4K2K) resolution and HEVC/H.265 & VP9 high-definition video playback supported
  • Ultra reliable commercial device with 24/7 operability
  • Energy efficient, reducing energy cost and environmental footprint
This media player is capable of driving UHD (4k) content. With a resolution that goes up to 3840x2160 pixels your content will be close to perfect. This feature marks the players that are capable of delivering content that is fluent and stutter free in UHD (4k). This player is a multi-output solution. Which means one player drives up to four screens. Computing devices with this feature are the perfect backbone for video walls and other multi-screen solutions. These include symmetrical and asymmetrical video walls, depending on software and content. This Digital engine is created for 24/7 use. It is actively cooled with a fan and ensures low power consumption. Combine this feature with a long lifecycle and you will see why this Digital Engine will lower your Total Cost of Ownership (TCO). The DE6340 is based on the AMD platform. More specifically on the AMD Embedded Ryzen V1000 platform. This computing device is capable of driving four screens. Therefore, it's perfect for video wall applications and menu boards. These units support native hardware decoding for modern codecs like the HEVC/H265 10 bit. Offloading the CPU, the GPU handles the decoding of the video. This creates a fluent playback up to 60fps. AOPEN Intelligent Control (AiCU) is built for global enterprise brands, AiCU enables network operators with an intelligent device management solution that automates industrial and commercial applications. AiCU brings cloud service and advanced embedded device control technology together into a single dashboard.
DE6340 V1807B 128G 4Gx2 W10
Technical Reference
Product Summary
Brand
AOpen
SKU
10242596
Manu Part #
91.DEL00.E0B0
Features
AMD V1000 excellent CPU performance
4 x HDMI 2.0 output for Ultra HD (4K2K) resolution and HEVC/H.265 & VP9 high-definition video playback supported
Ultra reliable commercial device with 24/7 operability
Energy efficient, reducing energy cost and environmental footprint
Device monitoring and management with AiCU Intelligent Control (Optional)
General
Product Type
Media Player
Product Family
Digital Engine
PartNo
91.DEL00.E0B0
Operating Temperature
0 to 50
Operating Humidity
0 to 95
USB Port(s)
2 x USB 2.0 (Front) • 2 x USB 3.0 (Rear)
Electrical Voltage
100 to 240
Memory Type(s)
DDR4
Processor Number
V1807B
HDMI Port(s)
4 x HDMI 2.0
Network Card
Realtek RTL8111H
Network Card Data Link Protocol
Ethernet
Solid State Storage Type
M.2
Integrated Graphics Device
Radeon Vega 11
Barcode
4712947238809
Width
16.6
Height
4.8
Depth
15.7
Weight
2
Solid State Capacity
128
Turbo/Boost Speed
3.8
Physical
Case Colour
Black

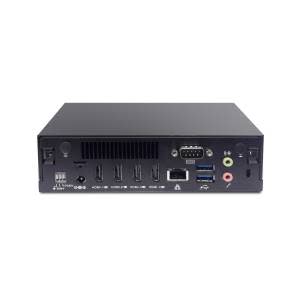

Interfaces/Ports
RJ-45 Ports
1 x RJ-45
Audio Line Out Ports
1 x Audio Line Out
Microphone In Port
1 x Microphone In
Serial Ports
1 x RJ-50 RS232
DC Power
1 x DC
Network
Wired Network
Yes
Display
Display Included
No
Memory
Memory Slot
2 x SODIMM
Sound
Sound Card
Realtek HD Audio ALC269Q
Electrical
Power Adaptor
AC Adaptor
Electrical Power Available
90
Motherboard
Expansion Slots
2 x M.2 2242 • 1 x M.2 2230 (for WiFi)
