Startech, 2.5 USB 3.0 SATA Hard Drive Encl w/UASP

Brand
Startech
SKU
10031332
MPN
S2510BPU337

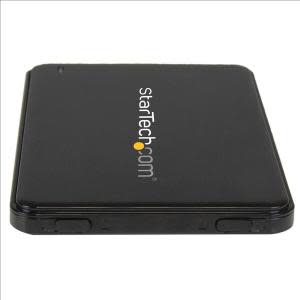

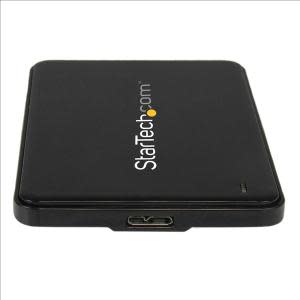

StarTech.com 2.5in USB 3.0 SATA Hard Drive Enclosure w/ UASP for Slim 7mm SATA III SSD/HDD
Please log in or create an account with Exertis to buy or see full details of our product
  • Supports drives 7mm in height
  • Supports USB Attached SCSI Protocol (UASP)
  • Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
  • Tool-less installation
This slim, pocket-sized drive enclosure is specifically engineered for 7mm drives, giving you the option to turn your thin hard drive or solid state drive into an external storage solution connected through UASP-enabled USB 3.0. With a thin yet durable design, the enclosure fits your 7mm drives perfectly to eliminate any drive movement inside the enclosure, which could be a problem with a looser-fitting enclosure.

To help save you time transferring data to and from your 7mm SSD or HDD, this UASP-enabled enclosure supports transfer speeds up to 70% faster than traditional USB 3.0, when used with a UASP-enabled host computer.

Plus, the enclosure is USB-powered, so you don’t have to carry a power adapter with you, giving you one less thing to pack when you’re travelling.

To ensure compatibility with your computer system, the S2510BPU337 supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.



Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP enabled StarTech.com Enclosure, and a SATA III solid state drive.

The StarTech.com Advantage
- Provides the ideal operating environment, with an enclosure designed specifically for thin form-factor drives to minimize internal movement
- 70% Faster than traditional USB 3.0, with UASP Transfer Protocol
2.5 USB 3.0 SATA Hard Drive Encl w/UASP
Technical Reference
Product Summary
Brand
Startech
SKU
10031332
Manu Part #
S2510BPU337
Features
Supports drives 7mm in height
Supports USB Attached SCSI Protocol (UASP)
Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
Tool-less installation
Powered directly from the USB port
Compatible with USB revision 3.0/2.0/1.1 (5 Gbps/480 Mbps/1.5 Mbps)
Power/Activity LED indicator
Plug-and-Play and Hot-Swap compatible
Design
Product colour
Black
Product type
HDD/SSD enclosure
LED indicators
Activity, Power
Certification
CE, FCC, REACH
Material
Plastic
RoHS compliance
Y
Weight & dimensions
Width
80 mm
Weight
44 g
Depth
126 mm
Height
9 mm
Package weight
132 g
Package width
93 mm
Package depth
146 mm
Package height
44 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 65 °C
Operating relative humidity (H-H)
10 - 95%
Packaging content
Cables included
USB
Manual
Y
Ports & interfaces
USB connectivity
Y
USB connector type
Micro-USB B
USB version
3.2 Gen 1 (3.1 Gen 1)
USB connector gender
Female
USB ports quantity
1
Performance
Plug and Play
Y
Data transfer rate
5 Gbit/s
Chipset
ASMedia - ASM1053 - 6G
UASP support
Y
Storage
Storage drive size
2.5"
Supported storage drive interfaces
Serial ATA, Serial ATA II, Serial ATA III
Maximum storage capacity
2 TB
Hot-swap
Y
Supported storage drive heights
7 mm
Number of storage drives supported
1
