Startech, 2.5 USB3.0 Ext SATA III SSD HD Encl

Brand
Startech
SKU
10023266
MPN
S2510BPU33

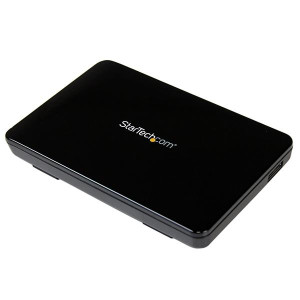

StarTech.com 2.5in USB 3.0 External SATA III SSD Hard Drive Enclosure with UASP – Portable External HDD
Please log in or create an account with Exertis to buy or see full details of our product
  • Compliant with USB Attached SCSI Protocol (UASP) Transport Specifications
  • Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives

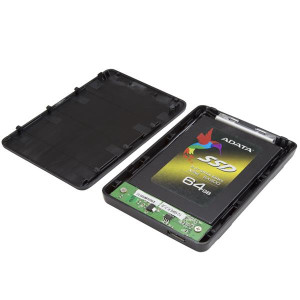

  • Tool-less installation
  • Powered directly from the USB port

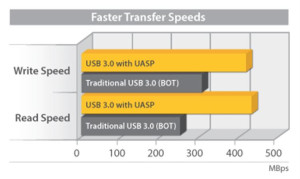

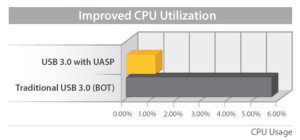

The S2510BPU33 USB 3.0 Hard Drive Enclosure with UASP lets you connect a 2.5in SATA III hard drive (HDD) or solid state drive (SSD) through an available USB port. The enclosure delivers optimal performance with a USB 3.0 connection, but is backward compatible with USB 2.0/1.1 host connections as well.\n\nEnhanced with UASP (USB Attached SCSI Protocol), this 2.5" SATA III enclosure performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP reduces latency, significantly increasing transfer speeds and reducing processor usage to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.\n\nWith support for SATA I/II/III, and large capacity drives (tested up to 1TB) this HDD enclosure is compatible with virtually any 2.5in SATA hard drive, and greatly increases the storage/backup capabilities of your computer.\n\nFor added portability the USB 3.0/SATA III enclosure features tool-less HDD installation, and requires no external power adapter.\n\nTo ensure compatibility with your computer system, the S2510BPU33 supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.\n\nImproved Performance with UASP\nUASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.\n\nThe StarTech.com Advantage\n- 70% Faster than traditional USB 3.0, with UASP Transfer Protocol\n- Maximum portability, with USB powered enclosure and Tool-less HDD installation
2.5 USB3.0 Ext SATA III SSD HD Encl
Technical Reference
Product Summary
Brand
Startech
SKU
10023266
Manu Part #
S2510BPU33
Features
Compliant with USB Attached SCSI Protocol (UASP) Transport Specifications
Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
Tool-less installation
Powered directly from the USB port
SuperSpeed USB 3.0 compliant host interface supporting data transfer rates up to 5Gbps
High Speed USB 2.0 compliant host interface, with transfer rates up to 480Mbps
Power/Activity LED indicator
Plug-and-Play and Hot-Swap compatible
Design
Product colour
Black
LED indicators
Activity,Power
Certification
CE, FCC, REACH
Product type
HDD/SSD enclosure
Material
Plastic
RoHS compliance
Y
Weight & dimensions
Width
88 mm
Weight
72 g
Depth
132 mm
Height
15 mm
Package width
135 mm
Package height
42 mm
Package depth
175 mm
Package weight
190 g
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%

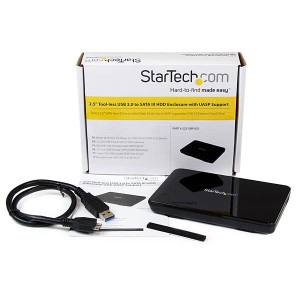

Packaging content
Cables included
USB
Manual
Y
Power
Power source type
USB
Ports & interfaces

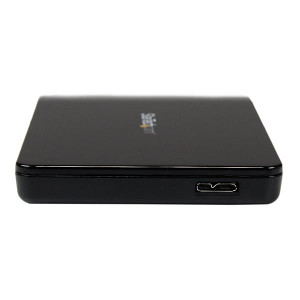

USB connector type
Micro-USB B
USB connectivity
Y
USB version
3.2 Gen 1 (3.1 Gen 1)
USB connector gender
Female
Integrated USB cable
N
USB ports quantity
1
Performance
Plug and Play
Y
Data transfer rate
5 Gbit/s
Chipset
ASMedia - ASM1053
UASP support
Y
Storage
Supported storage drive interfaces
Serial ATA,Serial ATA II,Serial ATA III
Storage drive size
2.5"
Maximum storage capacity
1000 TB
Hot-swap
Y
Supported storage drive heights
9.5 mm
Number of storage drives installed
1
Number of storage drives supported
1
