Startech, SATA to 2.5in or 3.5in IDE HD Adapter

Brand
Startech
SKU
10011717
MPN
SAT2IDEADP
StarTech.com SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks
Please log in or create an account with Exertis to buy or see full details of our product
  • Supports 40-pin (3.5in) and 44-pin (2.5in) IDE hard drives
  • Durable, metal construction
  • Compatible with most 3.5in StarTech.com SATA hard drive docking stations and duplicators
  • Large capacity hard drive support, with 48-bit LBA

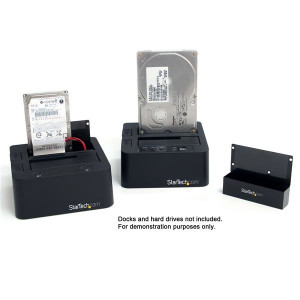

Use your 2.5in or 3.5in IDE hard drives in a SATA HDD Docking Station

The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps).

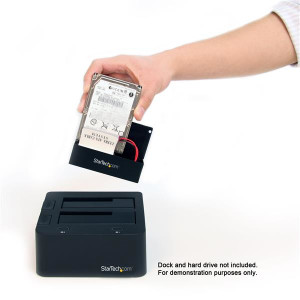

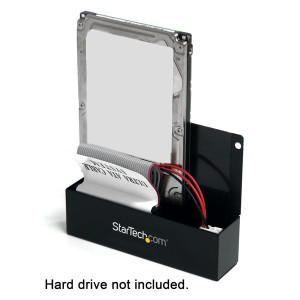

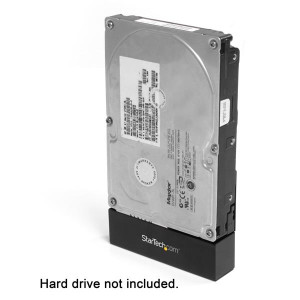

The unique mounting style of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA-only desktop computers, or any other scenario that requires an IDE hard drive to be connected through Serial ATA.

The SAT2IDEADP hard drive adapter works with most StarTech.com SATA HDD Docking Stations and Duplicators.

Backed by 2-year warranty and free, lifetime technical support.

The StarTech.com Advantage

- Unique design allows any 2.5/3.5in IDE hard drive to be used and inserted (upright) into a SATA HDD docking station or duplicator drive bay
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
SATA to 2.5in or 3.5in IDE HD Adapter
Technical Reference
Product Summary
Brand
Startech
SKU
10011717
Manu Part #
SAT2IDEADP
Features
Supports 40-pin (3.5in) and 44-pin (2.5in) IDE hard drives
Durable, metal construction
Compatible with most 3.5in StarTech.com SATA hard drive docking stations and duplicators
Large capacity hard drive support, with 48-bit LBA
Compliant with SATA revision 1.0
Compatible with PATA (IDE) 66/100/133 MBps hard drives
Weight & dimensions
Width
78 mm
Weight
104 g
Depth
101 mm
Height
26 mm
Packaging data
Package weight
200 g
Package width
110 mm
Package height
52 mm
Package depth
147 mm
Operational conditions
Operating temperature (T-T)
5 - 80 °C
Storage temperature (T-T)
-40 - 70 °C
Relative humidity
8 - 90%
Technical details
Sustainability certificates
RoHS
Performance
Product colour
Black
Certification
CE, FCC, REACH
Chipset
JMicron - JM20330
Storage drive sizes supported
2.5,3.5"
Packaging content
Manual
Y
Quantity per pack
1 pc(s)
Ports & interfaces
Connector 1
SATA 7-pin + SATA 15-pin
Connector 2
IDE 40-pin + IDE 44-pin + LP4
Connector 1 gender
Male
Connector 2 gender
Female
