Startech, USB-SATA Ext Hard Drive Docking Station

Brand
Startech
SKU
10011711
MPN
SATDOCK25U
StarTech.com USB to SATA External Hard Drive Docking Station for 2.5in SATA HDD
Please log in or create an account with Exertis to buy or see full details of our product
  • Supports 2.5in SATA I/II Hard Drives and Solid State Drives (SSD)
  • No power adaptor required, completely powered by USB; USB Y cable included

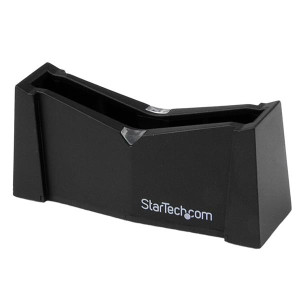

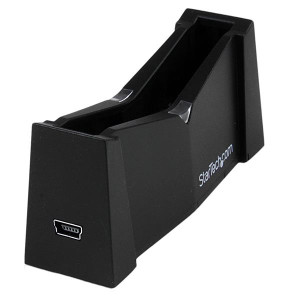

  • Convenient built-on stand rotates out to provide extra vertical stability to inserted hard drive
  • Fully compliant with USB 2.0 and backwards compatible with USB 1.1
Enable external, hot-swap access to 2.5in SATA drives from a portable mini USB2.0 drive dock

The SATDOCK25U Hard Drive Docking Station provides full, instant access to any 2.5in SATA (SATA, SATA II, SATA III) hard drive or solid state drive - without having to mount the hard drive in a computer or install it in an enclosure!

This highly compact HDD dock offers the portability needed to add simple external storage to virtually any USB-capable computer, making it a definite asset to have on hand to connect external (bare) hard drives even in mobile computing applications. Plus, it's small form factor design requires minimal space on a desktop or work bench. Large capacity drives (tested with up to 1TB) can be used to greatly enhance your computer's storage/backup capabilities.

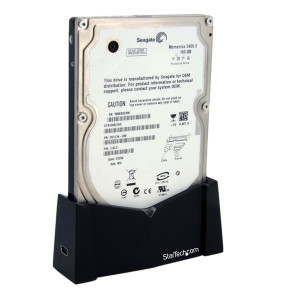

Simply insert a 2.5in SATA hard drive or SSD into the dock, then connect the hard drive dock to a host computer through USB 2.0. To uninstall or swap the hard drive, simply disconnect the USB cable and remove the drive from the dock!

In addition to providing a fast convenient way to access or recover data from a mobile 2.5in drive this dock is completely USB powered, so no power adapter is required. The HDD Dock supports plug and play hard drive installation on most operating systems, and offers data transfer speeds of up to 480Mbps - a convenient alternative to external hard drive enclosures that saves the time needed to prepare the drive for conventional installation.

The StarTech.com Advantage

- Ultra compact design and no external power adapter for excellent versatility and portability
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
USB-SATA Ext Hard Drive Docking Station
Technical Reference
Product Summary
Brand
Startech
SKU
10011711
Manu Part #
SATDOCK25U
Features
Supports 2.5in SATA I/II Hard Drives and Solid State Drives (SSD)
No power adaptor required, completely powered by USB; USB Y cable included
Convenient built-on stand rotates out to provide extra vertical stability to inserted hard drive
Fully compliant with USB 2.0 and backwards compatible with USB 1.1
OS independent; No software or drivers required
Hot Swap and Plug and Play compatible
Transfer rate up to 480Mbps
Weight & dimensions
Weight
30 g
Packaging data
Package weight
126 g
Package width
172 mm
Package depth
144 mm
Package height
32 mm
Operational conditions
Operating temperature (T-T)
5 - 80 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Performance
Product colour
Black
Housing material
Plastic
Other features
Dimensions (WxDxH)
25 x 82 x 36 mm
Compatible operating systems
Windows ME/ 2000/ XP(32/64bit)/ Vista(32/64bit), 7(32/64bit), Linux, Max OS 9.2
Interface
USB
