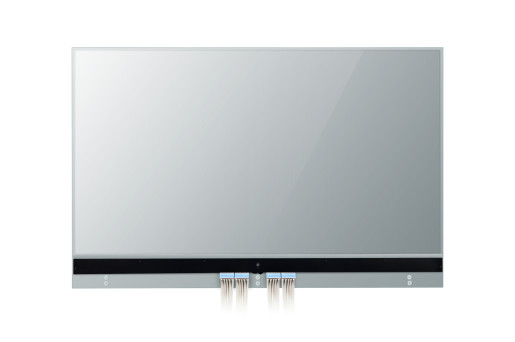

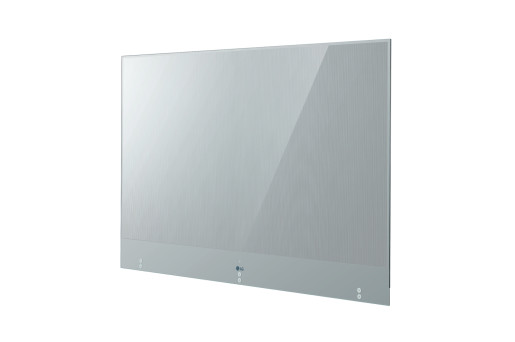

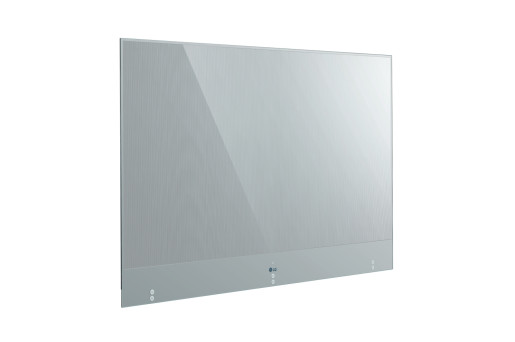

LG, EW5F 55" LARGE FORMAT DISPLAY OLED

Brand
LG
SKU
10247327
MPN
55EW5F-A
LG 55EW5F-A signage display Digital signage flat panel 139.7 cm (55") OLED Full HD Silver
Please log in or create an account with Exertis to buy or see full details of our product
  • Brightness(Typ.): 400 cd/m²
  • Transparency(Typ.) : 38% (Panel)
  • Bezel : 7.9 mm (T/B/L), 121.7 mm (B)
  • Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR

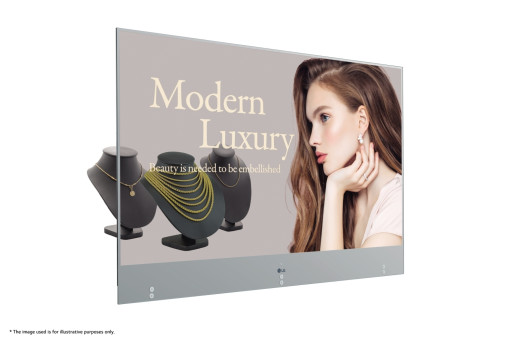

A New Level of See-through View
LG Transparent OLED signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings.

FULL OF LIFE
Unrivaled Picture Quality

LG’s OLED technology, featuring self-lighting pixels, maintains accurate and vivid colors even when the display becomes transparent. It brings content to life, making it difficult for people to separate content from the real objects placed behind the screen.

SPACIAL HARMONY
High Transparency

Thanks to its high transparency (38%), much higher than conventional LCD transparent displays, LG Transparent OLED signage blends into its surroundings seamlessly and naturally. The display’s see-through view turns places where it is installed into open and interactive spaces.

SPACIAL HARMONY
Customizable and Expandable Design

LG Transparent OLED signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. There is no limit to the applications of Transparent OLED signage, and it can complement any venue in which it is installed.

SEE THROUGH
Effective Information Delivery

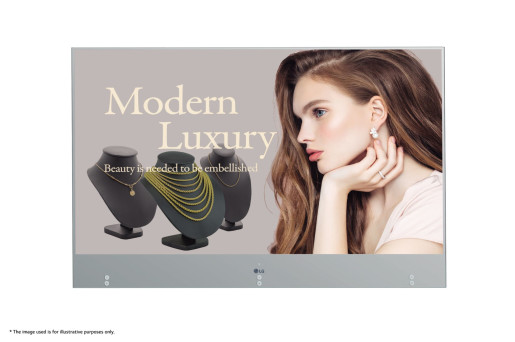

While clearly showing objects behind the screen, LG Transparent OLED signage overlays information right over them so that viewers can easily see both the object and the relevant information without having to change their view.

VISUAL FEAST
AR Effects in the Dark

Using LG transparent OLED signage, you can surprise viewers with AR effects in the dark. The content displayed seems life-like, adding another “wow” factor to the viewing experience.

PRODUCT DURABILITY
Robust Design for Safety

The tempered front glass protects the screen from external impact, and its certified safety design means it is reliable enough to endure shock and vibration caused by the surrounding environment, such as moving trains.
EW5F 55" LARGE FORMAT DISPLAY OLED
Technical Reference
Product Summary
Brand
LG
SKU
10247327
Manu Part #
55EW5F-A
Features
Brightness(Typ.): 400 cd/m²
Transparency(Typ.) : 38% (Panel)
Bezel : 7.9 mm (T/B/L), 121.7 mm (B)
Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR
IEC 61373 Standard Certified
Design
Product colour
Silver
Placement supported
Indoor
Product design
Digital signage flat panel
Bezel width (bottom)
12.2 cm
Bezel width (top)
7.9 mm
Bezel width (side)
7.9 mm
Weight & dimensions
Width
1225.5 mm
Depth
6.6 mm
Weight
12.3 kg
Height
810.1 mm
Packaging data
Package weight
22.4 kg
Package width
1345 mm
Package depth
207 mm
Package height
920 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%
Display
Display diagonal
139.7 cm (55")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9
Touchscreen
N
Display technology
OLED
Display brightness
400 cd/m²
Transparency
38%
Power
AC input voltage
100 - 240 V
Power consumption (typical)
309 W
AC input frequency
50 - 60 Hz
Packaging content
Cables included
AC, DisplayPort, IR sensor, LAN (RJ-45), RS-232
Handheld remote control
Y
Ports & interfaces
USB port
Y
Ethernet LAN
Y
RS-232C
Y
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
2
USB ports quantity
2
Audio (L/R) out
1
Remote (IR) input
1
DisplayPorts in
1
DisplayPorts out
1
Remote (IR) output
1
Performance
Purpose
Retail
Other features
Quick start guide
Y
