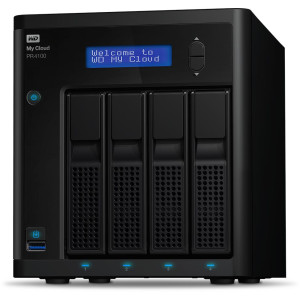

WD, NAS Ext 40TB My Cloud DR4100 LAN

Brand
WD
SKU
10157635
MPN
WDBNFA0400KBK-EESN
Western Digital PR4100 N3710 Ethernet LAN Desktop Black NAS
Please log in or create an account with Exertis to buy or see full details of our product
The core of team collaboration\nWith space to keep virtually everything, the My Cloud Pro Series offers your creative team the network storage to edit, save and share production files from anywhere with an internet connection. Compatible with both Mac and PC, you're able to protect your content regardless of OS. And with all photos, videos and files organized in one place, your team has all it needs to streamline its creative workflow.\n\nBackup for Mac and PC\n\nSave content from a PC automatically with WD SmartWare Pro, or easily back up a Mac through Apple Time Machine.\n\nAccess Anywhere\n\nAccess, edit and share HD media with clients and colleagues using MyCloud.com and the My Cloud mobile app anywhere you have an internet connection.\n\nStream Anything\n\nBuilt-in hardware transcoding prepares media for streaming in the right format and quality, and with the Plex Media Server installed on your NAS, you can beautifully stream to any device with an internet connection.\n\nStorage to Organize Everything\n\nWith high capacity network storage, you get the space you need to keep all your shots organized in one spot. Combined with a quad core Intel Pentium N3710 processor and 4GB of RAM, you can seamlessly stream HD videos or share content with multiple users. Keep your production files, .RAW photos, or final mixes in a single place and ready for access with the My Cloud Pro Series.\n\nOne-touch copying\n\nUsing an integrated copy button, the My Cloud Pro Series can back up and preserve everything in a single move. The My Cloud Pro Series is also exFAT compatible, so you can plug in a camera or an external hard drive like the My Passport Wireless Pro device and automatically offload everything as soon as you're back from a shoot.\n\nData protection your way\n\nMultiple RAID options help you protect your digital library however you need, while password protection and 256-bit AES volume encryption helps safeguard your files from prying eyes. Along with two power ports in case of a power supply failure, the My Cloud Pro Series helps keep your data safe.\n\nCentralize, organize and beautifully stream with Plex\n\nWith built-in hardware transcoding and the downloadable Plex Media Server, your team can smoothly stream HD media wherever they have an internet connection. Hardware transcoding prepares media for streaming in the right format and quality, and with the Plex app installed on your NAS, you can beautifully stream to any device.
NAS Ext 40TB My Cloud DR4100 LAN
Technical Reference
Product Summary
Brand
WD
SKU
10157635
Manu Part #
WDBNFA0400KBK-EESN
Design
Product colour
Black
Chassis type
Desktop
Weight & dimensions
Width
170 mm
Depth
232 mm
Height
192 mm
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-40 - 70 °C
Network
Ethernet LAN
Y
Wi-Fi
N
Ethernet LAN data rates
10,100,1000 Mbit/s
Processor
Processor frequency
1.6 GHz
Processor family
Intel® Pentium®
Processor model
N3710
Processor boost frequency
2.56 GHz
Processor cache
2 MB
Processor socket
BGA 1170
Processor lithography
14 nm
Thermal Design Power (TDP)
6 W
Processor operating modes
64-bit
Processor cache type
L2
Processor codename
Braswell
Tjunction
90 °C
PCI Express configurations
1x2+2x1,1x4,2x2,4x1
System bus rate
2.5 GT/s
ECC supported by processor
N
Stepping
D1
Maximum internal memory supported by processor
8 GB
Processor series
Intel® Pentium N3000 Series for Mobile
Processor package size
25 x 27 mm
Conflict-Free processor
Y
Scenario Design Power (SDP)
4 W
Processor code
SSSR2KL
On-board graphics adapter model
Intel® HD Graphics 405
L2 cache
2 MB
Integrated 4G WiMAX
N
Processor cores
4
Processor threads
4
PCI Express slots version
2
CPU configuration (max)
1
Memory
Internal memory
4 GB
Processor special features
Intel Virtualization Technology (VT-x)
Y
Intel Virtualization Technology for Directed I/O (VT-d)
N
Intel VT-x with Extended Page Tables (EPT)
Y
Intel 64
Y
Embedded options available
Y
Idle States
Y
Intel Trusted Execution Technology
N
Enhanced Intel SpeedStep Technology
Y
Intel® AES New Instructions (Intel® AES-NI)
Y
Execute Disable Bit
Y
Intel® Hyper Threading Technology (Intel® HT Technology)
N
Intel® OS Guard
N
Intel® Secure Key
Y
Intel Stable Image Platform Program (SIPP)
N
Intel® Quick Sync Video Technology
Y
Intel® Identity Protection Technology (Intel® IPT)
Y
Thermal Monitoring Technologies
Y
Intel Clear Video Technology
Y
Intel® Clear Video HD Technology (Intel® CVT HD)
Y
Intel Enhanced Halt State
Y
Intel® InTru™ 3D Technology
N
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Y
Intel® Smart Response Technology
N
Intel® Turbo Boost Technology
N
Intel® Wireless Display (Intel® WiDi)
Y
UART
Y
Intel® Anti-Theft Technology (Intel® AT)
N
Intel® Insider™
N
Intel® Small Business Advantage (Intel® SBA)
N
Intel Rapid Storage Technology
N
Intel® High Definition Audio (Intel® HD Audio)
Y
Intel Secure Boot
Y
Intel Smart Connect Technology
N
Memory types supported by processor
DDR3L-SDRAM
Memory channels supported by processor
Dual
Maximum number of PCI Express lanes
4
Number of execution units
16
Ports & interfaces
USB port
Y
Ethernet LAN (RJ-45) ports
2
Graphics
On-board graphics adapter base frequency
400 MHz
Maximum on-board graphics adapter memory
8 GB
On-board graphics adapter burst frequency
700 MHz
Number of displays supported (on-board graphics)
3
Packaging content
Quick start guide
Y
Quick installation guide
Y
Package type
Box
Performance
Type
NAS
Device class
Home & Home Office
Backup function
Y
On/off switch
Y
Storage
Supported storage drive types
HDD
Storage drives installed
Y
Installed storage drive type
HDD
Hot-swap drive bays
Y
Total installed storage capacity
40 TB
Storage drive size
3.5"
Maximum supported storage capacity
40 TB
Storage drive capacity
10000 GB
Number of storage drives installed
4
Number of storage drives supported
4
Other features
Processor ARK ID
91830
