Tripp Lite, RACK ENCLOSURE 50U STANDARD DEPTH

Brand
Tripp Lite
SKU
10341901
MPN
SR50UB

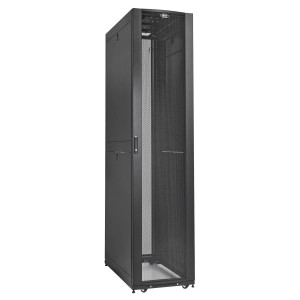

Tripp Lite SR50UB SmartRack Premium 50U Standard-Depth Rack Enclosure Cabinet
Please log in or create an account with Exertis to buy or see full details of our product
  • Maximum capacity: 3000 lb. (1363 kg) stationary, 2250 lb. (1022 kg) rolling load
  • Doors and side panels lock securely to help prevent damage, tampering or theft
  • Ships fully assembled for immediate deployment and equipment mounting
  • Provides physical equipment and media security required for PCI DSS compliance
Standard-Depth 50U Server Cabinet Accommodates 19 in. Rack Equipment

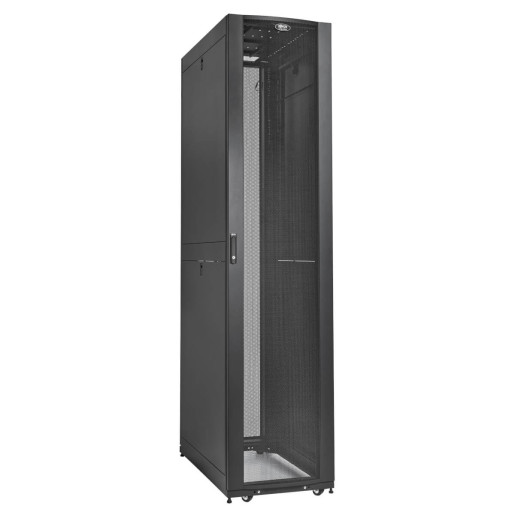

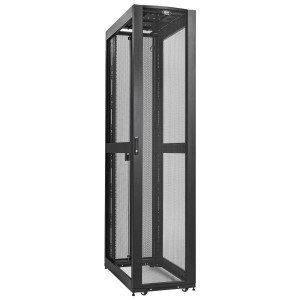

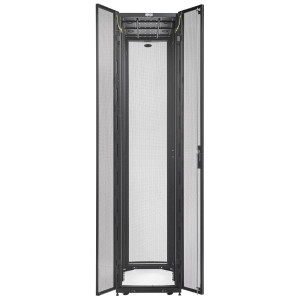

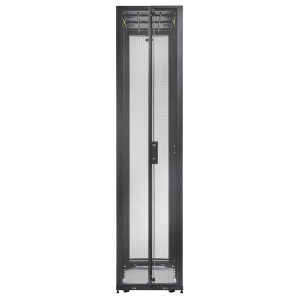

This SmartRack® 50U rack enclosure is designed for network wiring closets, retail locations, classrooms, back offices and other areas with essential rack-mount IT equipment. Constructed from heavy-duty steel with a durable black powder-coated finish, the SR50UB has a maximum stationary load capacity of 3000 pounds (1363 kilograms) and a maximum rolling load capacity of 2250 pounds (1022 kilograms).

Exceptional 50U Height Lets You Make the Best Use of Valuable Floor Space
The extra height allows you to stack more equipment vertically and make optimal use of available floor space. This 50U rack cabinet has a footprint of 24 inches (600 millimeters) wide and 43 inches (1092 millimeters) deep.

Keeps Important Equipment Secure

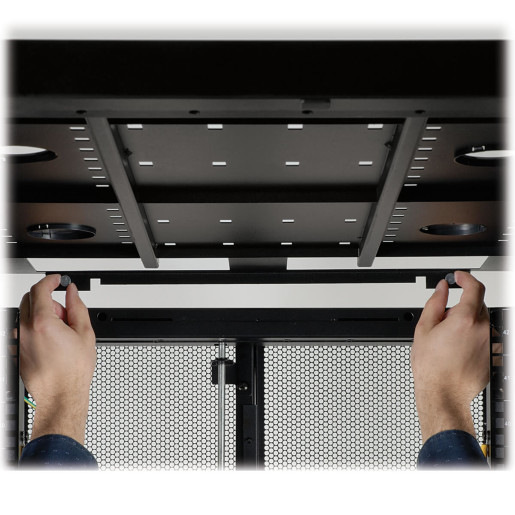

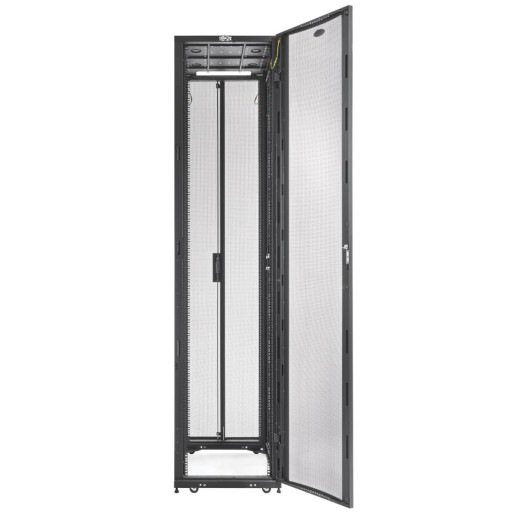

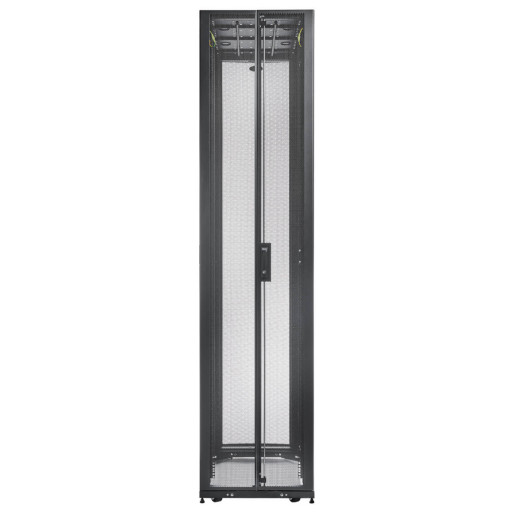

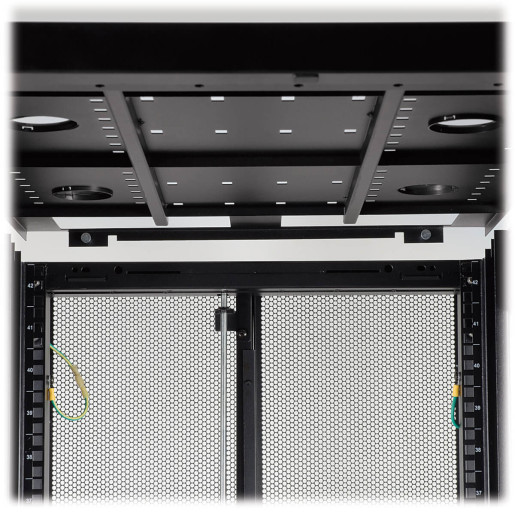

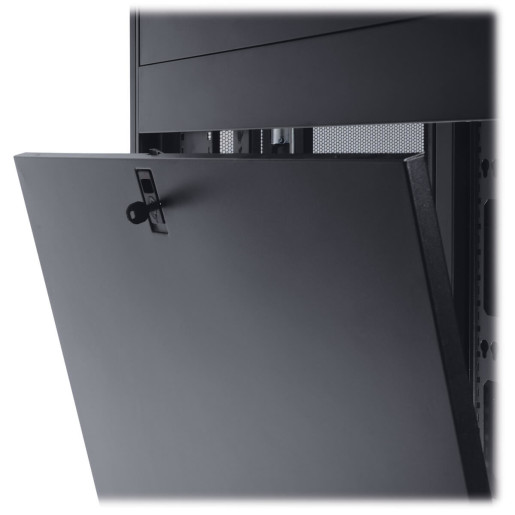

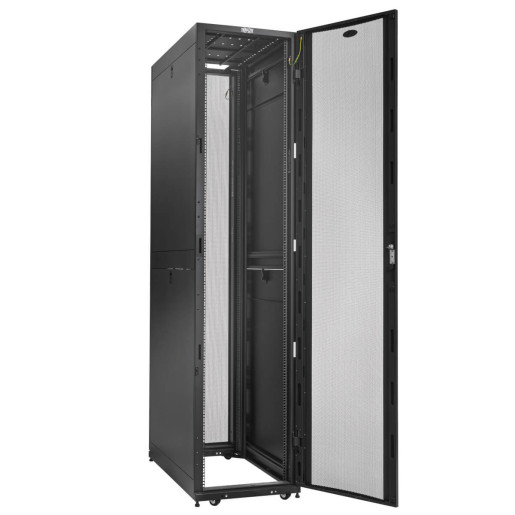

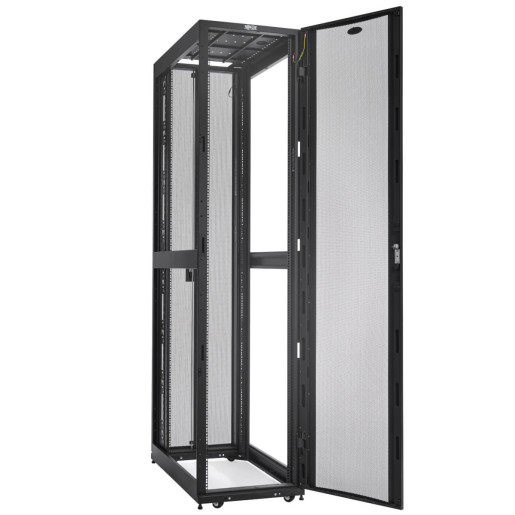

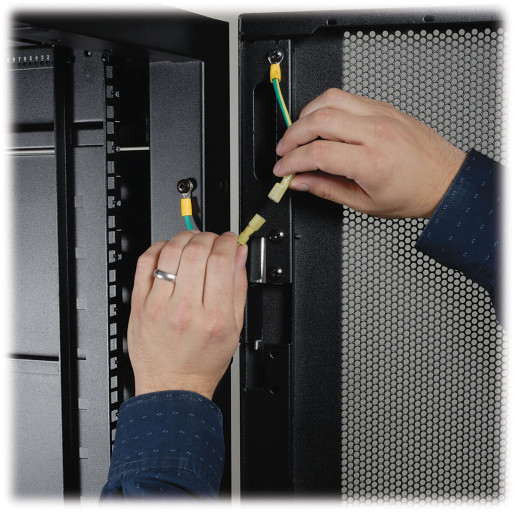

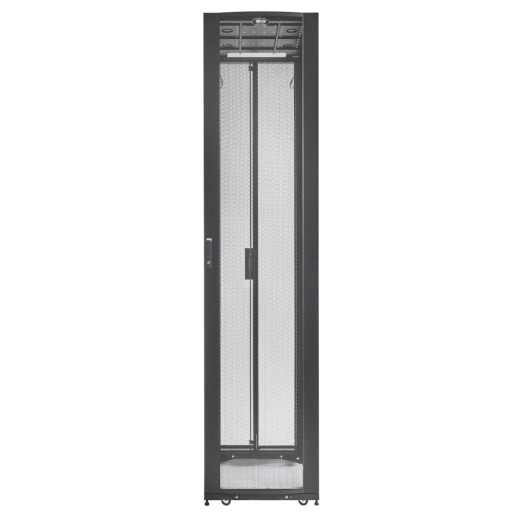

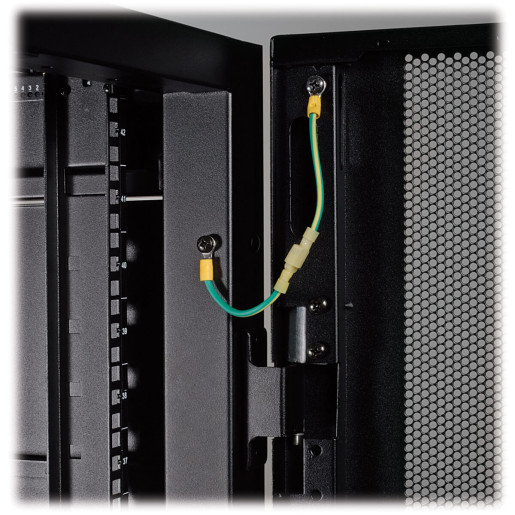

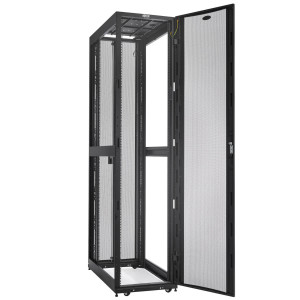

The reversible front door, split rear doors and half-size side panels lock securely to help prevent damage, tampering or theft. The doors, side panels and top panel are designed for quick release, making it easy to access connected equipment and cabling with little effort. Convenient top access ports and an open bottom allow easy cable routing through the cabinet. The vented doors allow generous airflow (more than 65% open space) from front to rear to keep your equipment cool and functioning at their peak.

Easy Enclosure and Equipment Installation

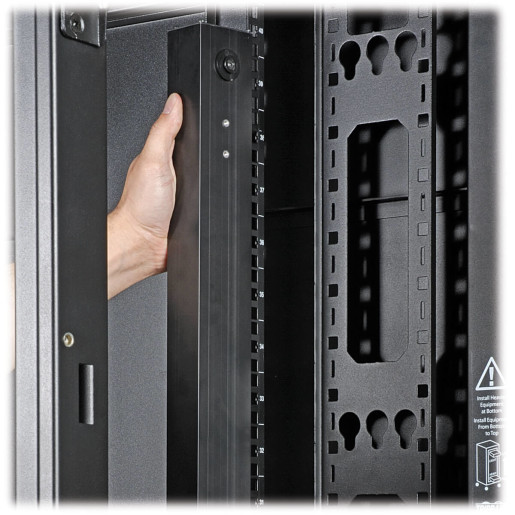

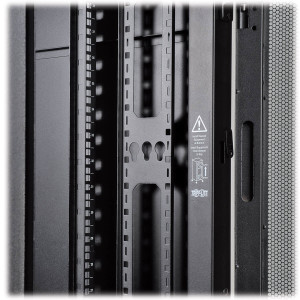

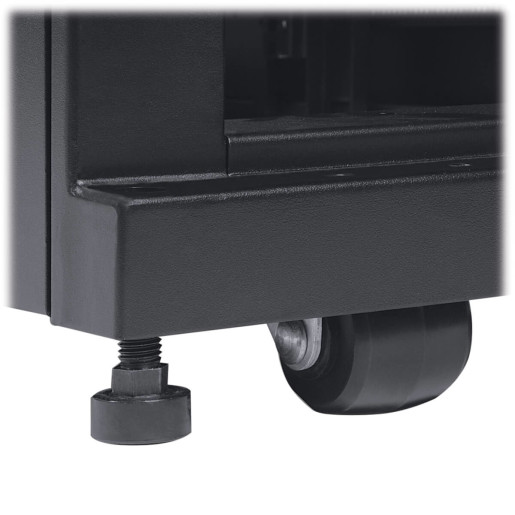

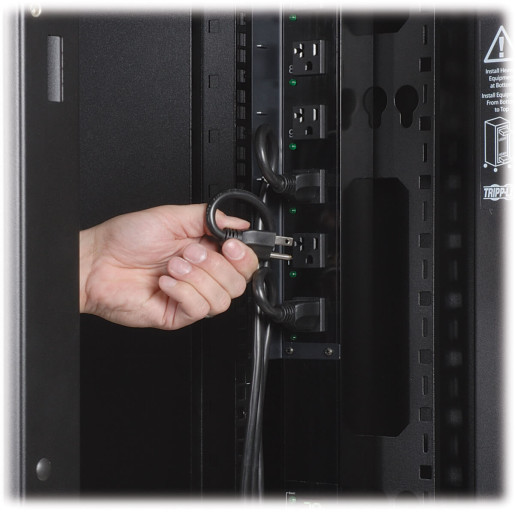

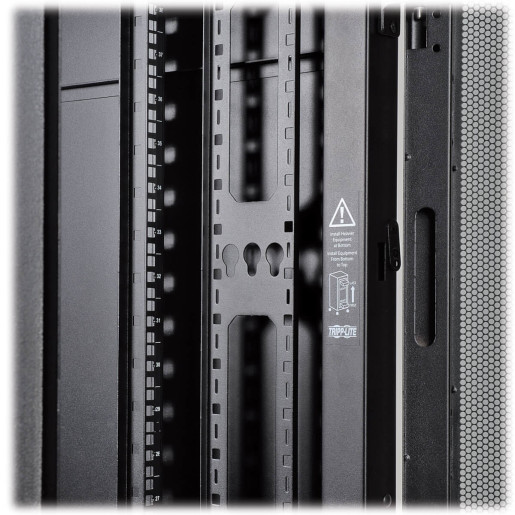

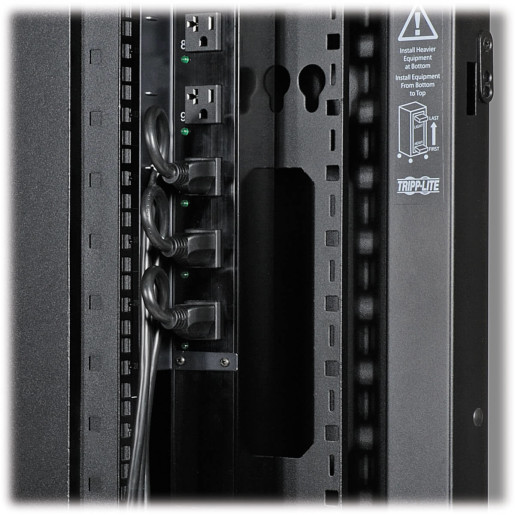

This 50U server rack comes fully assembled for quick and easy deployment with pre-installed (and removable) casters that let you maneuver it over a level, smooth, stable surface and through a standard seven-foot (2.1-meter) doorway into position, where it can be stabilized by adjusting the levelers (also removable). Front and rear mounting rails accept standard rack equipment up to 37 inches (940 millimeters) deep. Toolless 0U mounting rails allow quick installation of up to four compatible PDUs and vertical cable managers.

Designed for Baying Multiple Enclosures in a Row

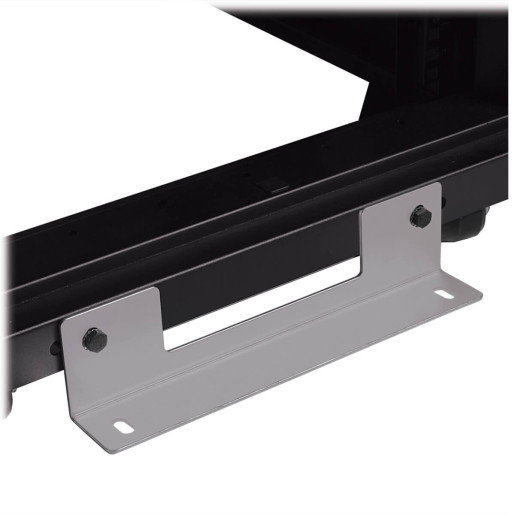

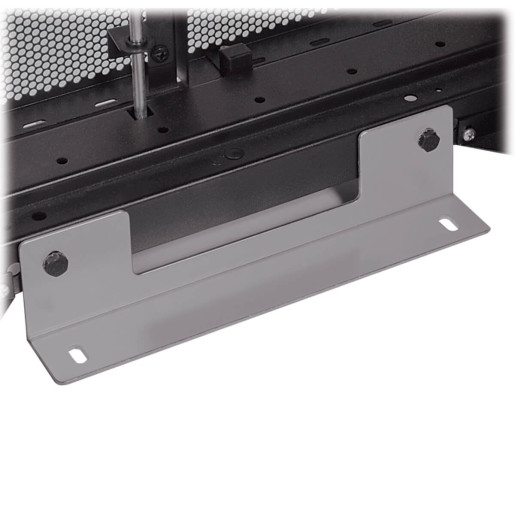

Built-in baying tabs allow the combination of two or more rack cabinets in a row. Center-to-center width can be set at 24 inches (600 millimeters) to match standard data center floor tiles.

Meets Payment Card Industry Standards
The SR50UB provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or transmit credit card information.
RACK ENCLOSURE 50U STANDARD DEPTH
Technical Reference
Product Summary
Brand
Tripp Lite
SKU
10341901
Manu Part #
SR50UB
Features
Maximum capacity: 3000 lb. (1363 kg) stationary, 2250 lb. (1022 kg) rolling load
Doors and side panels lock securely to help prevent damage, tampering or theft
Ships fully assembled for immediate deployment and equipment mounting
Provides physical equipment and media security required for PCI DSS compliance
Weight & dimensions
Width
600 mm
Depth
1092.2 mm
Weight
157.5 kg
Height
2347.5 mm
General
Product colour
Black
Type
Freestanding rack
Rack capacity
50U
Maximum weight capacity
1361 kg
International Protection (IP) code
IP20
Cable management
Y
Maximum weight capacity (rolling)
1021 kg
Packaging data
Package weight
181.8 kg
Package width
654 mm
Package depth
1155.7 mm
Package height
2481.6 mm
Manual
Y
Screws included
Y
Nuts included
Y
Number of screws
50
Number of nuts
50
Logistics data
Master (outer) case length
115.6 cm
Master (outer) case width
65.4 cm
Master (outer) case height
2.48 m
Products per master (outer) case
1 pc(s)
Master (outer) case gross weight
181.8 kg
Country of origin
China
