Tripp Lite, USB 3.1 Gen 1 SATA Hard Drive Quick Dock

Brand
Tripp Lite
SKU
10069901
MPN
U439-001
Tripp Lite USB 3.1 Gen 1 USB Type-C (USB-C) to SATA Hard Drive Quick Dock for 2.5 in. and 3.5 in. HDD and SSD
Please log in or create an account with Exertis to buy or see full details of our product

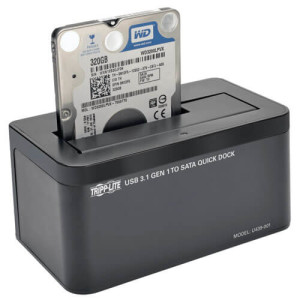

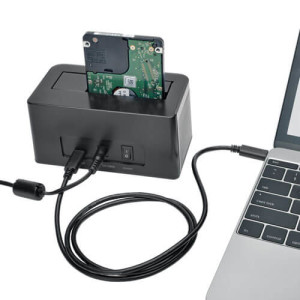

The U439-001 USB 3.1 Gen 1 to SATA Hard Drive Quick Dock allows you to quickly and easily add storage and transfer data to your computer, tablet, Ultrabook, Chromebook or laptop from a SATA hard drive. Just connect a 2.5-inch or 3.5-inch SATA HDD (Hard Disk Drive) or SSD (Solid State Drive) to the dock’s top port, connect the USB-C port to the USB-C port on your device using the included 3-foot cable, connect the external power supply to the dock and an AC power source, and turn on the rear on/off switch. A blue LED will indicate a solid connection with your device. The dock accepts SATA III (6 Gbps), SATA II (3 Gbps) and SATA I (1.5 Gbps) drives, including 2.5-inch and 3.5-inch SATA HDDs and SSDs of all capacities (tested up to 6 TB). It supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps, and is backward compatible with previous USB generations. Works right out of the package with no software or drivers required. Compatible with all major operating systems that comply with USB standards. USB Type-C and USB-C are trademarks of USB Implementers Forum

- Supports USB 3.1 Gen 1 data transfer rates of 5 Gbps
- Works with SATA HDD or SSD drives up to SATA III
- Backward compatible with previous USB generations
- Plug and play—no software or drivers required
- Includes 0.91 m (3-ft.) USB Type-C cable
- Ideal for adding external storage or transferring data to your computer, tablet, Ultrabook, Chromebook or laptop
- Plug and play—no software or drivers to download or install
- SATA drive slides easily into convenient slot
- On/off button powers off SATA drive when not in use
- LED indicates when the unit is connected
- USB Type-C cable included
- Accepts 2.5 in. and 3.5 in. SATA III (6 Gbps), SATA II (3 Gbps) and SATA I (1.5 Gbps) drives
- Works with both HDDs (Hard Disk Drive) and SSDs (Solid State Drive) of all capacities (tested up to 6 TB)
- Compatible with all major operating systems that comply with USB standards
USB 3.1 Gen 1 SATA Hard Drive Quick Dock
Technical Reference
Product Summary
Brand
Tripp Lite
SKU
10069901
Manu Part #
U439-001
Weight & dimensions
Width
137.2 mm
Weight
320 g
Depth
76.2 mm
Height
66 mm
General
Product colour
Black
Country of origin
China
Plug and Play
Y
Data transfer rate
5000 Mbit/s
Maximum data transfer rate
5 Gbit/s
LED indicators
Y
On/off switch
Y
Packaging data
Package weight
600 g
Package width
100.1 mm
Package depth
161 mm
Package height
150.1 mm
Logistics data
Master (outer) case length
17 cm
Master (outer) case width
33.5 cm
Master (outer) case height
52 cm
Products per master (outer) case
10 pc(s)
Master (outer) case gross weight
6.7 kg
Technical details
Sustainability certificates
RoHS
Master (outer) case GTIN (EAN/UPC)
10037332190182
Power
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Output current
2 A
Output voltage
12 V
Packaging content
Cables included
USB
Quick installation guide
Y
Ports & interfaces
DC-in jack
Y
Hard drive
Storage drive sizes supported
2.5,3.5"
Storage media type
HDD, SSD
Maximum storage capacity
6 TB
Number of storage drives supported
1
Other features
Standard interfaces
USB 3.2 Gen 1 (3.1 Gen 1)
