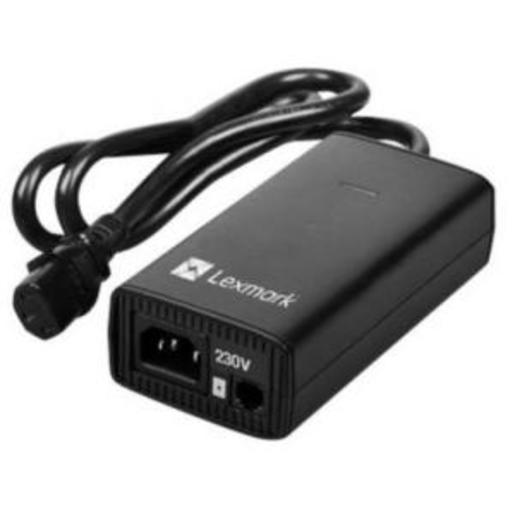

Lexmark, SPD0002 Surge Protection Device HV

Brand
Lexmark
SKU
10219604
MPN
SPD0002
Lexmark SPD0002 surge protector 1 AC outlet(s) 220-240 V Black 1.5 m
Please log in or create an account with Exertis to buy or see full details of our product
Smart surge protection for Lexmark laser printers and MFPs\nAvoid damage from power line and telecom surges with the Lexmark Surge Protective Device, designed specifically for Lexmark’s full line of laser printers and MFPs.\n\nTwo-way protection\nUsing industrial-grade components, the Lexmark Surge Protective Device shuts off damaging current spikes before they can reach your Lexmark laser printer or MFP. Telecom lines can carry device-damaging surges too, so our surge protector stands guard over the fax line going into your Lexmark MFP.\n\nUpgraded circuit board\nUnlike typical consumer-grade surge protectors, the Lexmark Surge Protective Device's printed circuit board has two layers of glass fibre for better flame resistance, plus thicker two-ounce copper plating to spread and dissipate heat better. There’s also insulating tape and fibreglass component covers for an additional layer of heat protection during a surge event.\n\nQuality enclosure\nLexmark’s specially-designed surge protector enclosure offers higher flame resistance than many consumer surge protectors. Plus, it has reinforced insulation construction with double retention features and is welded shut to resist tampering.\n\nShort-circuit protection\nThermal cut-off fuses reduce the chance of short circuits if a sustained or exceptionally large surge causes internal component temperatures to rise to undesirable levels.\n\nThe right connections\nThe built-in 1.5 metre IEC appliance coupler cord attaches directly to a Lexmark device’s power connector, while the appliance inlet accepts your Lexmark device’s existing power cord.\n\nProtection status LED\nA blue LED indicates protection when lit and need for replacement when unlit.
SPD0002 Surge Protection Device HV
Technical Reference
Product Summary
Brand
Lexmark
SKU
10219604
Manu Part #
SPD0002
Power
AC outlet types
C14 coupler
Nominal input voltage
220-240 V
Surge energy rating
1750 J
Peak power
1800 W
AC outlets quantity
1 AC outlet(s)
AC input frequency
50 - 60 Hz
Operational conditions
Operating relative humidity (H-H)
8 - 80%
Operating temperature (T-T)
0 - 43 °C
Packaging content
Number of products included
1 pc(s)
Cables included
Phone (RJ-11)
Weight & dimensions
Cable length
1.5 m
Certificates
Certification
UL 1449-1:2014 4th Edition, IEC/EN 61643-11:2002, IEC/EN 61643-21:2012
General
Country of origin
China
Product colour
Black
Packaging data
Package weight
465 g
Package dimensions (WxDxH)
135 x 243 x 60 mm
Indication
LED indicators
Status
Ports & interfaces
Cordless
N
