Tripp Lite, 4-Post Shelf Kit for Wallmount Racks 1U

Tripp Lite, 4-Post Shelf Kit for Wallmount Racks 1U

Tripp Lite 4-Post 1U Universal Adjustable Rackmount Shelf Kit for Wallmount Racks
Product details
The 4POSTRAILKITWM wall-mount rack shelf kit provides extra support for a 1U UPS system, PDU or other rack-mount component that weighs 68 kgs or less. It includes two adjustable mounting rails that attach to the sides of your EIA-standard 19-inch wall-mount open frame rack or enclosure. Constructed using cold-rolled steel with a durable black powder-coated finish, this heavy-duty rack rail kit comes with mounting hardware compatible with square-hole racks.

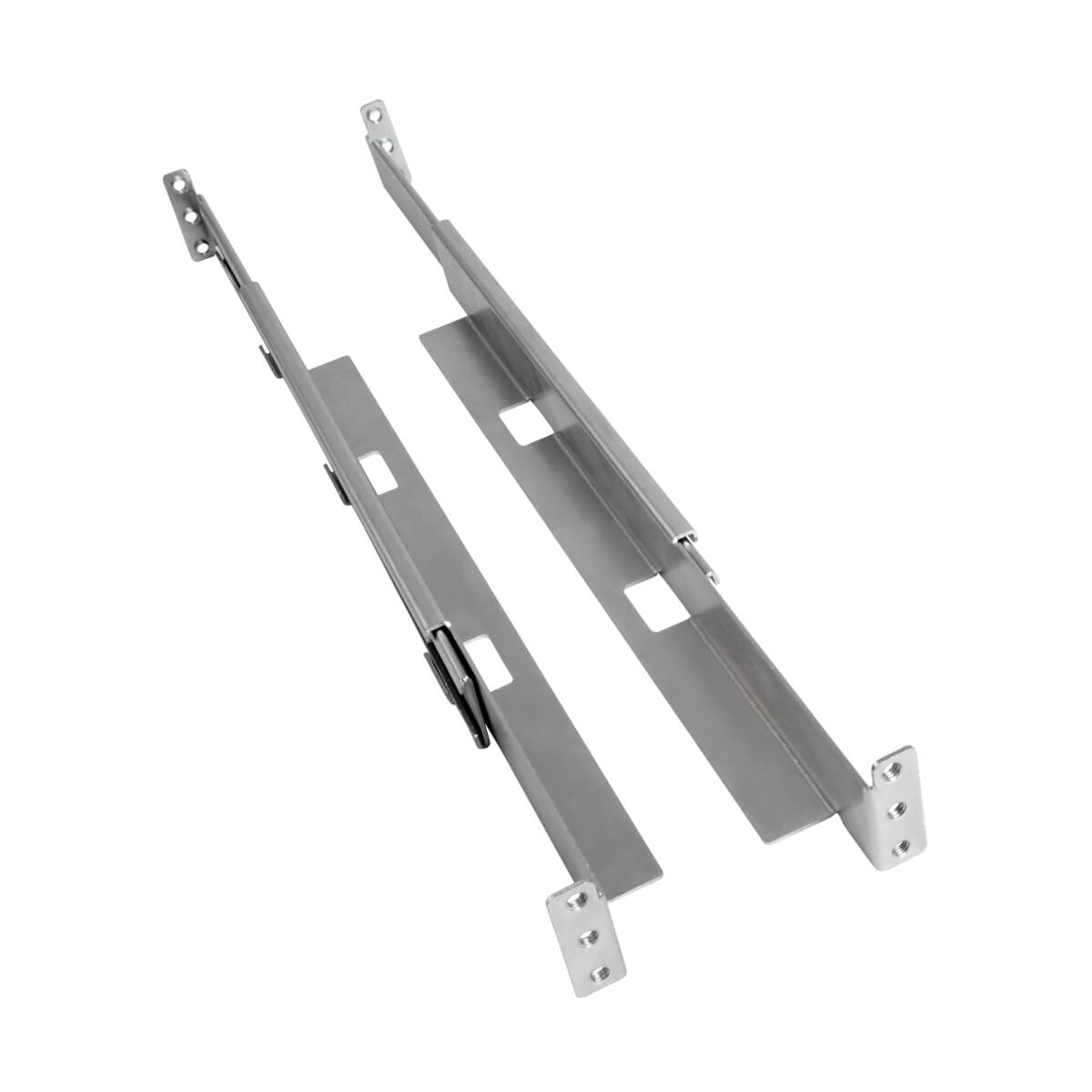

The rails offer front-to-rear support for equipment with 17.5-inch-wide rectangular chassis. They also adjust to any setting between 14.5 and 23.5 inches and leave the rack’s front and rear mounting holes free to attach equipment. Setup is hassle-free and saves money and time on installation. Threaded-hole rack installation is also supported with user-supplied mounting hardware.

● 1U rack rail kit with maximum load capacity of 68 kgs
● Compatible with 19 in. wall-mount open frame racks and enclosures
● Expandable mounting rails offer front-to-rear support for equipment with 17.5 in. rectangular chassis
● Rails adjust to any setting between 14.5 and 23.5 in.
● Leaves front and rear mounting holes free for equipment
● Cold-rolled steel construction with black powder-coated finish designed for long life
● Mounting hardware included for quick installation in square-hole rack
● Threaded-hole rack installation supported with user-supplied hardware

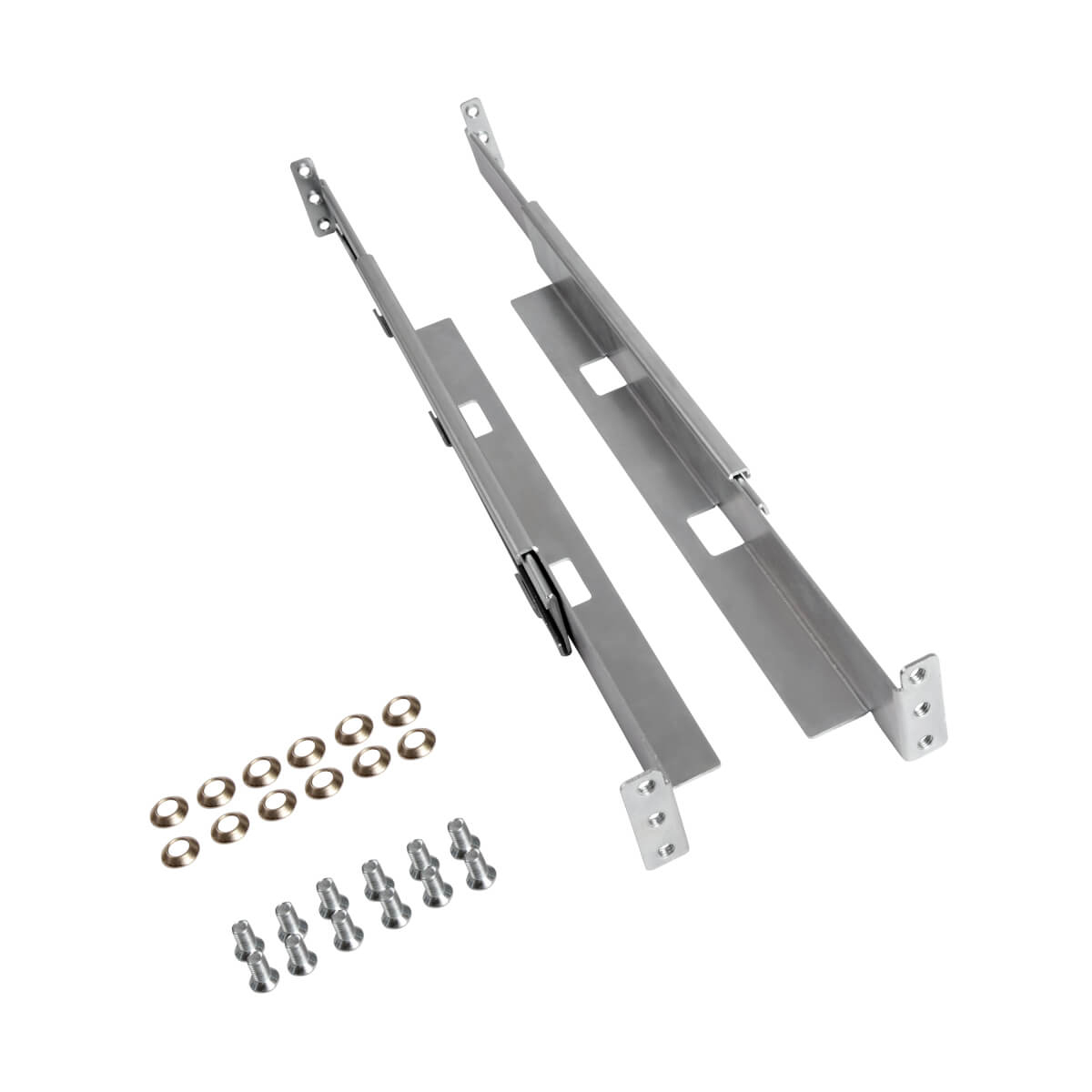

Package Includes

● Left rail piece, short
● Left rail piece, long
● Right rail piece, short
● Left rail piece, long
● (12) M6 screws
● (12) M6 washers
● Owner’s manual
Product Summary
Brand Tripp Lite
SKU 10195662
Manu Part # 4POSTRAILKITWM
Weight & dimensions
Width 37.8 mm
Weight 1.18 kg
Depth 368.3 mm
Height 43.7 mm
Depth (max) 59.7 cm
General
Product colour Silver
Type Mounting kit
Housing material Steel
Rack capacity 1U
Compatible rack width 19"
Packaging data
Package weight 1.36 kg
Package width 54.9 mm
Package height 50 mm
Package depth 385.1 mm
Logistics data
Quantity per master (outer) case 10 pc(s)
Master (outer) case length 40.5 cm
Master (outer) case width 27 cm
Master (outer) case height 13 cm
Master (outer) case weight 14 kg
Packaging content
Screws included Y
