HDMI/RS-232/Bi-Di IR 1 x CAT-5/6 Tsm

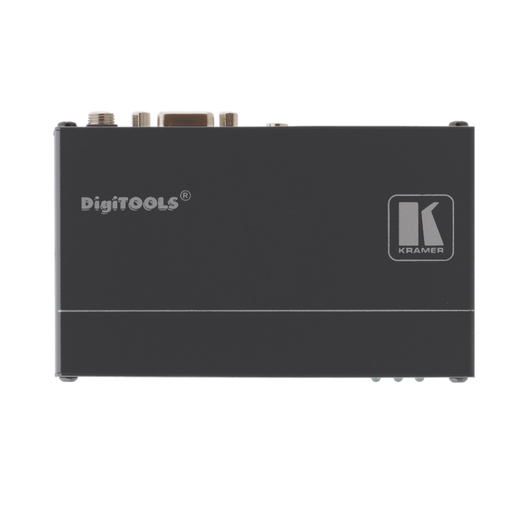

Kramer Electronics TP-573, 1920 x 1080 pixels, AV transmitter, 90 m, Black
Brand
Kramer
SKU
10150815
EAN
7291063031060
MPN
TP-573
Kramer Electronics TP-573, 1920 x 1080 pixels, AV transmitter, 90 m, Black
Log in to see pricing
The TP573 is a DGKatTM twisted pair transmitter for HDMI, bidirectional RS232 and infrared signals. The TP573 converts the input signals to a twisted pair signal and the TP574 converts it back to HDMI, RS232 and infrared signals.
- Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- DGKatTM Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKatTM cables designed specifically for optimum performance.
- HDMI Support - x.v.ColorTM, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTSHD.
- 3D Pass-Through.
- EDID PassThru - Passes EDID signals between the source and display.
- Bidirectional RS-232 & IR Interface. - 38400 max baud rate.
- System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BCDGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BCDGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BCDGKat723 cable.
- Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BCDGKat524, BCDGKat623 and BCDGKat723 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using nonKramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
- Power Connect SystemTM - A single connection to the transmitter powers both units.
- Compact DigiTOOLS - 3 units can be rack mounted sidebyside in a 1U rack space with the optional RK3T rack adapter.
- Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- DGKatTM Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKatTM cables designed specifically for optimum performance.
- HDMI Support - x.v.ColorTM, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTSHD.
- 3D Pass-Through.
- EDID PassThru - Passes EDID signals between the source and display.
- Bidirectional RS-232 & IR Interface. - 38400 max baud rate.
- System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BCDGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BCDGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BCDGKat723 cable.
- Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BCDGKat524, BCDGKat623 and BCDGKat723 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using nonKramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
- Power Connect SystemTM - A single connection to the transmitter powers both units.
- Compact DigiTOOLS - 3 units can be rack mounted sidebyside in a 1U rack space with the optional RK3T rack adapter.
Product Summary
Brand
Kramer
SKU
10150815
Manu Part #
TP-573
EAN
7291063031060
