Aten, 1U Ultra Short Depth 18.5 USB HDMI LCD

Brand
Aten
SKU
10223920
MPN
CL3700NW

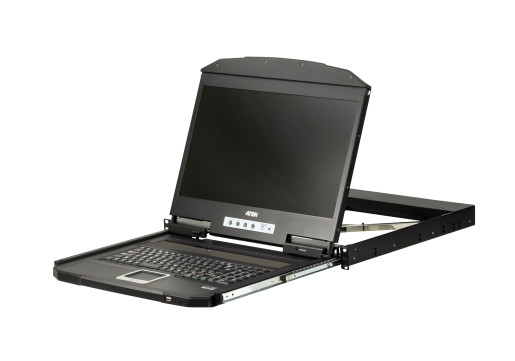

Aten CL3700NW rack console 47 cm (18.5") 1920 x 1080 pixels Metal,Plastic Black 1U
Please log in or create an account with Exertis to buy or see full details of our product
  • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM Console with short depth single rail design and a 18.5” LED-backlit LCD monitor allows you to work in narrow spaces
  • 18.5" LCD screen supports Full HD resolution of 1920 x 1080 @ 60Hz (CL3700NW); 18.5" LCD screen supports resolution of 1366 x 768 @ 60Hz (CL3700NX)
  • Supports an external console with USB / HDMI connectors; supports input video resolutions up to 1920 x 1200 @ 60Hz
The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3700 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.

The CL3700 is a dedicated front end sliding console for compatible HDMI KVM switches. The CL3700NW’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area. For added convenience, users can choose to manage the computer from an external console. The CL3700 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI monitor) are provided on the rear panel.

With a rich feature set, the CL3700 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.
1U Ultra Short Depth 18.5 USB HDMI LCD
Technical Reference
Product Summary
Brand
Aten
SKU
10223920
Manu Part #
CL3700NW
Features
Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM Console with short depth single rail design and a 18.5” LED-backlit LCD monitor allows you to work in narrow spaces
18.5" LCD screen supports Full HD resolution of 1920 x 1080 @ 60Hz (CL3700NW); 18.5" LCD screen supports resolution of 1366 x 768 @ 60Hz (CL3700NX)
Supports an external console with USB / HDMI connectors; supports input video resolutions up to 1920 x 1200 @ 60Hz
Display
Pixel pitch
0.213 x 0.213 mm
Display type
LED
Display brightness
350 cd/m²
Viewing angle, vertical
178°
Display resolution
1920 x 1080 pixels
Response time
20 ms
Display diagonal
47 cm (18.5")
Viewing angle, horizontal
178°
Contrast ratio (typical)
1000:1
Display number of colours
16.78 million colors
Technical details
LED indicators
Y
On/off switch
Y
Rack capacity
1U
Operating relative humidity (H-H)
0 - 80%
Built-in KVM switch
Y
Hot-Plug support
Y
Product colour
Black
Material
Metal,Plastic
Key lock
Y
Number of computers controlled
1
Power
Input current
1 A
AC adapter input voltage
100 - 240 V
AC adapter frequency
50/60 Hz
Power supply type
AC
Ports & interfaces
Keyboard port type
USB
Video port type
HDMI
Mouse port type
USB
Packaging content
Rack mount kit
Y
Cables included
AC,HDMI,USB
Manual
Y
Keyboard
Hot keys
Y
Built-in touchpad
Y
Weight & dimensions
Height
480.6 mm
Weight
9.01 kg
Depth
42.8 mm
Width
477 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Certificates
RoHS compliance
Y
