Aten, 1U Ultra Short Depth 18.5 USB VGA LCD

Brand
Aten
SKU
10223919
MPN
CL3100NX
Aten CL3100NX rack console 47 cm (18.5") 1366 x 768 pixels Metal,Plastic Black 1U
Please log in or create an account with Exertis to buy or see full details of our product
  • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM Console with short depth single rail design and a 18.5” LED-backlit LCD monitor allows you to work in narrow spaces
  • 18.5" LCD screen with resolution of 1366 x 768 @ 60Hz
  • Supports an external console with USB / VGA connectors; supports input video resolutions up to 1920 x 1200 @ 60Hz

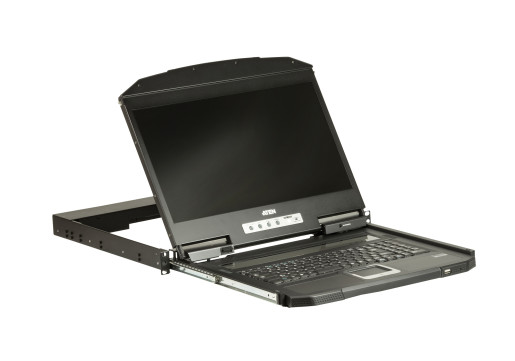

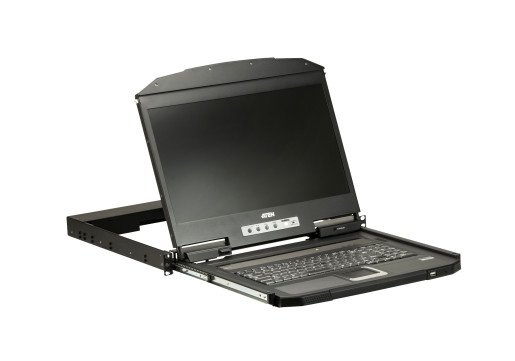

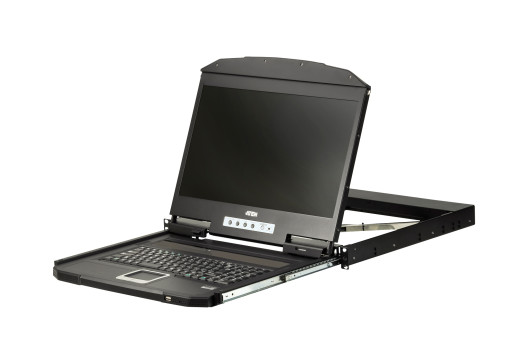

The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.

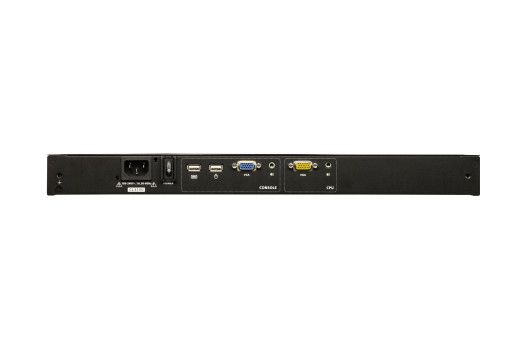

The CL3100 is a dedicated front end sliding console for compatible VGA KVM switches. For added convenience, users can choose to manage the computer from an external console. The CL3100 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and VGA monitor) are provided on the rear panel. The CL3100 also includes two mini stereo ports for connecting audio speakers.

With a rich feature set, the CL3100 is designed to exceed the requirements for space utility optimization, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.
1U Ultra Short Depth 18.5 USB VGA LCD
Technical Reference
Product Summary
Brand
Aten
SKU
10223919
Manu Part #
CL3100NX
Features
Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM Console with short depth single rail design and a 18.5” LED-backlit LCD monitor allows you to work in narrow spaces
18.5" LCD screen with resolution of 1366 x 768 @ 60Hz
Supports an external console with USB / VGA connectors; supports input video resolutions up to 1920 x 1200 @ 60Hz
Display
Pixel pitch
0.3 x 0.3 mm
Display type
LCD
Display brightness
250 cd/m²
Viewing angle, vertical
160°
Display resolution
1366 x 768 pixels
Response time
5 ms
Display diagonal
47 cm (18.5")
Viewing angle, horizontal
170°
Contrast ratio (typical)
1000:1
Display number of colours
16.78 million colors
Technical details
LED indicators
Y
On/off switch
Y
Rack capacity
1U
Operating relative humidity (H-H)
0 - 80%
Built-in KVM switch
Y
Hot-Plug support
Y
Product colour
Black
Material
Metal,Plastic
Key lock
Y
Number of computers controlled
1
Power
Input current
1 A
AC adapter input voltage
100 - 240 V
AC adapter frequency
50/60 Hz
Power supply type
AC
Ports & interfaces
Keyboard port type
USB
Video port type
VGA
Mouse port type
USB
Packaging content
Rack mount kit
Y
Cables included
AC,Audio (3.5mm),USB,VGA
Manual
Y
Keyboard
Hot keys
Y
Built-in touchpad
Y
Keyboard number of keys
105
Weight & dimensions
Height
480.6 mm
Depth
42.8 mm
Weight
9.07 kg
Width
477 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Certificates
RoHS compliance
Y
Certification
UL 60950-1, CAN/CSA
