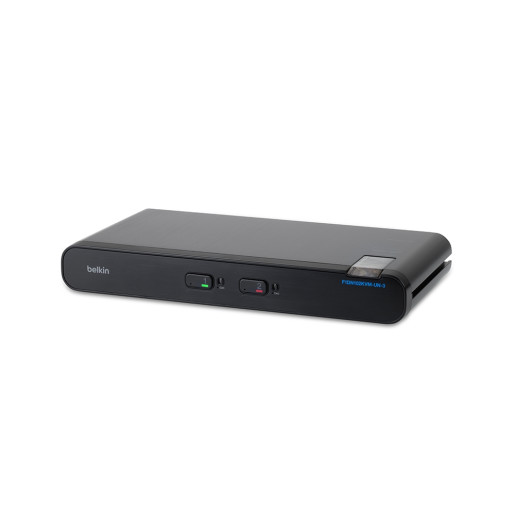

Belkin, 2 Port Single Head Universal DT SKVM

Brand
Belkin
SKU
10264199
MPN
F1DN102KVM-UN-3
Belkin F1DN102KVM-UN-3 KVM switch Rack mounting Black
Please log in or create an account with Exertis to buy or see full details of our product
  • Universal video support for up to 3840x2160@60hz refresh (on HDMI Console Output) 3840x2160@30Hz or 2860x1600@120Hz (on HDMI and DisplayPort Console Output)
  • Unique combo video connector that accepts DisplayPort or HDMI
  • Multi-platform support: Supports cross-platform systems, including DisplayPort, HDMI, and DVI-D video interface technologies via Belkin Passive Cables with high retention connectors
  • Common Criteria Validated to NIAP Protection Profile 3.0
Meets the Highest Standards for Cybersecurity
Ideal for highly sensitive applications that demand isolation between different network security enclaves, the Belkin Secure Universal KVM Switch allows operators to confidently toggle between multiple systems via easy push buttons, without worry of exposing vulnerabilities. Each port uses a dedicated processor and emulator to provide an isolated signal path, helping prevent data leakage between computers. Optical data diodes provide an additional layer of protection by ensuring unidirectional data flow.

Universal Compatibility with Auto-Sensing Ports
Boasting plug-and-play compatibility for DVI, HDMI, and DisplayPort, the Belkin Secure Universal KVM Switch helps IT administrators circumvent compatibility issues during deployment. Equipped with auto-sensing DisplayPort/HDMI combo ports, the switch can seamlessly connect multiple sources to a monitor even if they are using different display standards. This flexibility enables IT managers to deploy the same, secure KVM switch across their network without the need for unreliable active cables or costly external video converters.

Passive Cabling Streamlines Hardware Upgrades
Whereas other KVMs can struggle to bridge newer display technologies with legacy standards, the Belkin Secure Universal KVM switch leverages combo passive cabling to streamline system upgrades and new hardware rollout. Even during deployment, should a desktop not match the expected specifications on a given PC, the KVM can adapt nearly instantly with a single cable change.

Futureproof Design Maximizes ROI
The Belkin Secure Universal KVM Switch offers a connectivity solution that network administrators can rely upon for an entire IT lifecycle. Thanks to innovative video and connector architecture that anticipates future technology, this KVM switch keeps pace with system upgrades even as graphic inputs/outputs change. This allows the switch to provide a dramatically lower total cost of ownership than adapters, KVM changes, and other more costlier alternatives.

Delivers Crisp Resolution and Frame Rate
The Belkin Secure Universal KVM Switch is ideal for applications that demand outstanding resolutions and high refresh rates. It delivers resolutions up to 4K at 60 Hz for HDMI, up to 4K at 30 Hz for DisplayPort, and up to 2K at 120 Hz for both DisplayPort and HDMI.

Durable Chassis Resists Physical Tampering
With its sturdy uni-body chassis, this KVM switch prevents physical tampering by minimizing potential physical entry points. A holographic product label provides a clear visual indication of tampering, while internal, battery-backed, always-on electrical sensors render the unit inoperable if it is opened.

Accessories Facilitate Easy Setup
Designed for maximum flexibility, the Belkin Secure Universal KVM Switch adapts to fit your particular IT needs. Optional mounting brackets help minimize clutter by mounting the unit underneath a desk. And with its intuitive color-coding, the switch helps further streamline installation by enabling systematic management of high-side and low-side connections. An optional desktop controller unit works seamlessly as a remote control while a USB CAC reader can be added to provide for dual-factor authentication. Extended warranty options allow administrators to synchronize the life-cycle expectancies of the KVMs with other IT components on an operator’s desk.
2 Port Single Head Universal DT SKVM
Technical Reference
Product Summary
Brand
Belkin
SKU
10264199
Manu Part #
F1DN102KVM-UN-3
Features
Universal video support for up to 3840x2160@60hz refresh (on HDMI Console Output) 3840x2160@30Hz or 2860x1600@120Hz (on HDMI and DisplayPort Console Output)
Unique combo video connector that accepts DisplayPort or HDMI
Multi-platform support: Supports cross-platform systems, including DisplayPort, HDMI, and DVI-D video interface technologies via Belkin Passive Cables with high retention connectors
Common Criteria Validated to NIAP Protection Profile 3.0
Supports up to two host computers
Supports one display for the user
Supports CAC readers
Supports DCU remote control units
Unidirectional data paths: Optical data diodes prevent peripherals from being used to breach systems
Display security: Protected display interface prevents data leakage via the monitor
Design
Product colour
Black
Certification
FCC Класс B, UL, CE, RoHS, ICES, RCM
Housing material
Aluminum
Rack mounting
Y
Weight & dimensions
Width
317.5 mm
Depth
162.6 mm
Height
63.5 mm
Weight
2.2 kg
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
0 - 80%
Power
AC input voltage
100-240 V
Power source
AC
Input current
1.5 A
External power adapter
Y
Packaging content
Cables included
AC
Manual
Y
AC adapter included
Y
Ports & interfaces
Video port type
HDMI/DisplayPort
DisplayPort version
1.2a
Keyboard port type
USB
Mouse port type
USB
Audio connections
Y
Console ports
DisplayPort,HDMI
DisplayPorts quantity
2
HDMI version
2
Number of computers controlled
2
Console USB ports quantity
1
Performance
Maximum resolution
3840 x 2160 pixels
HD type
4K Ultra HD
Video bandwidth
60 Hz
Hot-Plug support
Y
