Aten, 4K HDMI Over IP Receiver with POE

Brand
Aten
SKU
10341950
MPN
VE8952R
Aten VE8952R AV extender AV receiver Black
Please log in or create an account with Exertis to buy or see full details of our product
  • Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN
  • Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4
  • Daisy Chaining - Connects multiple displays through a single port
  • Video Wall Support
The ATEN VE8952R 4K HDMI over IP Receiver with PoE delivers visually lossless 4K AV signals with low latency over long distance via a standard Gigabit network. It is an effective and easy-to-use solution that directly addresses the challenges system integrators encounter when deploying AV over IP.

Limitless Scalability and Flexibility

From a simple point-to-point setup to hundreds of endpoints, it offers flexibility, scalability and multi-functionality in extender, splitter, matrix switch, and video wall applications.

No Complicated IP Setup

Allows you to effortlessly switch input sources via top panel pushbuttons/ID display and offers simple configuration that requires no extensive IT experience.

No Additional Server PCs or Software Required

Effortlessly manage your AV over IP system by logging in to any receiver from the intuitive web GUI with drag and drop operation.

Go Further for Less with Daisy Chaining

Easily expand your AV network coverage without cable clutter or extra network switches while also lowering per-port costs.

Locate Anywhere without the Need for Power Cabling

With PoE support, you can easily place VE8952R units where they are needed the most without having to install additional power cabling and outlets.

Flexible Control with Mobile App

Manage and control any VE8952R with a dedicated app (VE8950/VE8900 Control App) that allows instant preview, monitoring, and switching of video sources to streamline your operations.

Package Contents

- 1x VE8952R 4K HDMI over IP Receiver with PoE
- 1x RS-232 Terminal Block
- 1x Power Adapter
- 4x Foot Pads
- 1x User Instructions
4K HDMI Over IP Receiver with POE
Technical Reference
Product Summary
Brand
Aten
SKU
10341950
Manu Part #
VE8952R
Features
Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN
Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4
Daisy Chaining - Connects multiple displays through a single port
Video Wall Support
Weight & dimensions
Width
166 mm
Depth
124.9 mm
Weight
680 g
Height
29 mm
General
Product colour
Black
Type
AV receiver
Material
Metal
Maximum resolution
4096 x 2160 pixels
LED indicators
Y
HDCP
Y
Maximum refresh rate
60 Hz
Maximum transfer distance
100 m
Rack mounting
N
Extended display identification data (EDID)
Y
Daisy chain
Y
Impedance
100 Ω
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%

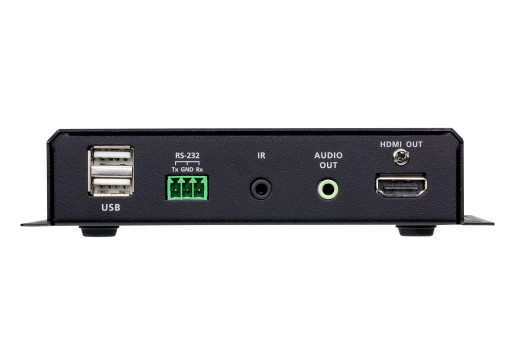

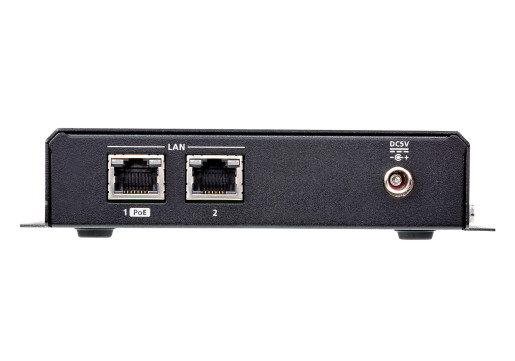

Ports & interfaces
Connectivity technology
Wired
DC-in jack
Y
USB connector type
USB Type-A
USB ports quantity
2
Number of HDMI outputs
1
RJ-45 input ports
2
Remote (IR) output
1
Audio output
1
RS-232 output ports
1
Power
Power over Ethernet (PoE)
Y
External power adapter
Y
