Kramer, 4K60 4:2:0 HDCP 2.2 Video Encoder

Brand
Kramer
SKU
10308773
MPN
KDS-EN6

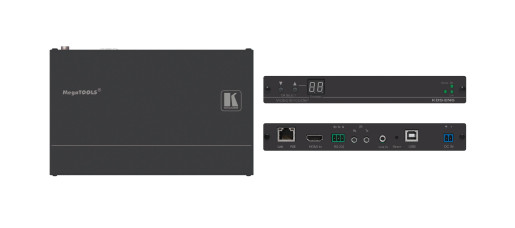

Kramer Electronics KDS-EN6 AV extender AV receiver Black
Please log in or create an account with Exertis to buy or see full details of our product
  • Video Support — HDMI 4K@60Hz (4:2:0)
  • Audio Support — HDMI/line in, 7.1 PCM, Dolby True–HD, and DTS–HD Master audio
  • Virtualization — IR, USB, RS–232 over IP
  • Network — Switch 1G multicast IGMP snooping managed layer 2
The KDS−EN6 encoder provides streaming over an IP network that carries 4K@60Hz (4:2:0) video, audio, IR, RS−232, USB over IP with HDCP 2.2 in unicast (one−to−one) or multicast (many−to−many) configurations.
4K60 4:2:0 HDCP 2.2 Video Encoder
Technical Reference
Product Summary
Brand
Kramer
SKU
10308773
Manu Part #
KDS-EN6
Features
Video Support — HDMI 4K@60Hz (4:2:0)
Audio Support — HDMI/line in, 7.1 PCM, Dolby True–HD, and DTS–HD Master audio
Virtualization — IR, USB, RS–232 over IP
Network — Switch 1G multicast IGMP snooping managed layer 2
Power — PoE or external power supply
Control — Kramer Network, Web UI, API
HDCP — 2.2 compliance
Video Effects — Video Wall — 1 to 256 screens
Weight & dimensions
Weight
600 g
Dimensions (WxDxH)
187.5 x 115 x 25.4 mm
General
Product colour
Black
Type
AV receiver
Maximum resolution
4096 x 2160 pixels
Supported graphics resolutions
800 x 600 (SVGA),1152 x 864 (XGA+),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800 (WXGA),1360 x 768 (WXGA),1368 x 768,1400 x 1050 (SXGA+),1600 x 1200 (UXGA),1600 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),3840 x 2160,4096 x 2160
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Packaging data
Package weight
800 g
Package dimensions (WxDxH)
345 x 165 x 52 mm
Ports & interfaces
Connectivity technology
Wired
USB connector type
USB Type-B
HDMI in
1
Remote (IR) input
1
Remote (IR) output
1
RJ-45 output ports
1
RS-232 input ports
1
Power
Input current
0.14 A
Operating voltage
48 V
