Kramer, 4K60 4:2:0 HDCP 2.2 Video Encoder

Brand
Kramer
SKU
10308774
MPN
KDS-DEC6

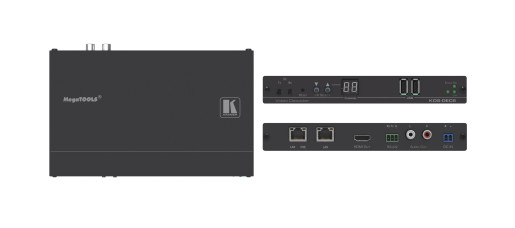

Kramer Electronics KDS-DEC6 video decoder 4096 x 2160 pixels
Please log in or create an account with Exertis to buy or see full details of our product
  • Video Support — HDMI 4K@60Hz (4:2:0)
  • Audio Support — HDMI/line in, 7.1 PCM, Dolby True–HD, and DTS–HD Master audio
  • Virtualization — IR, USB, RS–232 over IP
  • Network — Switch 1G multicast IGMP snooping managed layer 2
The decoder provides streaming over an IP network that carries 4K@60Hz (4:2:0) video, audio, IR, RS−232, USB over IP with HDCP 2.2 in unicast (one−to−one) or multicast (many−to−many) configurations.
4K60 4:2:0 HDCP 2.2 Video Encoder
Technical Reference
Product Summary
Brand
Kramer
SKU
10308774
Manu Part #
KDS-DEC6
Features
Video Support — HDMI 4K@60Hz (4:2:0)
Audio Support — HDMI/line in, 7.1 PCM, Dolby True–HD, and DTS–HD Master audio
Virtualization — IR, USB, RS–232 over IP
Network — Switch 1G multicast IGMP snooping managed layer 2
Power — PoE or external power supply (not included)
HDCP — 2.2 compliance
Video Effects — Video Wall — 1 to 256 screens
Weight & dimensions
Width
187.5 mm
Depth
115 mm
Height
25.4 mm
Weight
600 g
Package weight
800 g
Package depth
165 mm
Package width
345 mm
Package height
52 mm
General
Product colour
Black
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Network
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000BaseE-T(X)
Ethernet interface type
Gigabit Ethernet
Performance
Audio formats supported
AAC
Maximum video resolution
4096 x 2160 pixels
Maximum frame rate
60 fps
Supported graphics resolutions
640 x 350,640 x 400,640 x 480 (VGA),720 x 480,720 x 576,800 x 600 (SVGA),848 x 480,1024 x 768 (XGA),1152 x 864 (XGA+),1280 x 1024 (SXGA),1280 x 800 (WXGA),1280 x 960,1360 x 768 (WXGA),1366 x 768,1400 x 1050 (SXGA+),1440 x 900 (WXGA+),1600 x 1200 (UXGA),1600 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),3840 x 2160,4096 x 2160
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
RS-232 ports
1
Number of HDMI outputs
1
