Aten, 4X4 USB 3.1 Gen1 Industrial Hub Switch

Brand
Aten
SKU
10238335
MPN
US3344I
Aten US3344I computer data switch
Please log in or create an account with Exertis to buy or see full details of our product
  • Enables four computers to share USB peripheral up to four devices
  • Supports USB 3.1 Gen1 specification, maximum data transfer rates up to 5Gbps
  • Multiplatform support - Windows, Mac and Linux
  • LED indicators display port focus
The US3344I is a 4-port USB3.1 Gen1 Industrial Switch that enables 4 computers to share the use USB3.1 Gen1 devices, such as keyboard, mouse and other peripheral devices. The peripheral focus can be given to a computer manually by using pushbutton on the switch.

It eliminates the cost the implement the complicate redundant systems and equipments for each computer. The US3344I chassis and rack mountable design is suitable for industrial environment. For extra convenience, it features an external remote control port that can simplify cabling layout via traditional RS-422/RS-485 signals.

The US3344I allows for a neat and tidy installation –The USB cables are bundled to save the extra cost of purchasing USB cables.

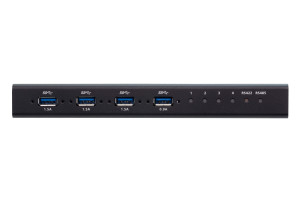

4X4 USB 3.1 Gen1 Industrial Hub Switch
Technical Reference
Product Summary
Brand
Aten
SKU
10238335
Manu Part #
US3344I
Features
Enables four computers to share USB peripheral up to four devices
Supports USB 3.1 Gen1 specification, maximum data transfer rates up to 5Gbps
Multiplatform support - Windows, Mac and Linux
LED indicators display port focus
Metal mechanical cassis with wall mountable designs
Support aftermarket USB M2 screw locking cable
Support port selection via remote controller or RS-422/RS-485 link through 5-pin terminal block
Hot pluggable
Support DC 9-24V power input by terminal block
Support Battery Charging V1.2 and over current protection
Performance
Maximum data transfer rate
5 Gbit/s
LED indicators
Y
Product colour
Black
Housing material
Metal
Hot-Plug support
Y
Weight & dimensions
Height
25 mm
Weight
1.04 kg
Depth
200 mm
Width
80 mm
Operational conditions
Operating relative humidity (H-H)
0 - 80%
Operating temperature (T-T)
5 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Ports & interfaces
DC-in jack
Y
Packaging content
Quick start guide
Y
Cables included
USB Type-A - USB Type-B
