Aten, USB HDMI HDBaseT2.0 KVM Extender

Brand
Aten
SKU
10210404
MPN
CE820

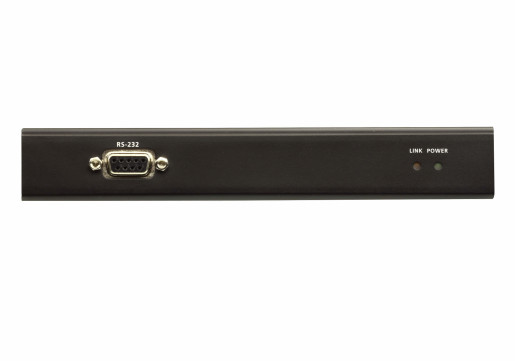

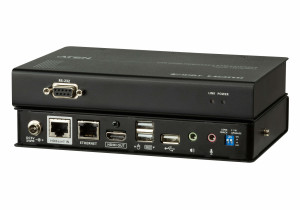

Aten CE820 KVM extender Transmitter & Receiver
Please log in or create an account with Exertis to buy or see full details of our product
The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
USB HDMI HDBaseT2.0 KVM Extender
Technical Reference
Product Summary
Brand
Aten
SKU
10210404
Manu Part #
CE820
Transmitter
Transmitter video port type
HDMI
Transmitter local keyboard/mouse port type
USB
Transmitter local video port type
HDMI
Transmitter local video port
Y
RJ-45 ports quantity (transmitter)
1
General
Cable types supported
Cat5e,Cat6,Cat6a
Material
Metal
Maximum transfer distance
150 m
Rack mounting
Y
Maximum digital resolution
4096 x 2160 pixels
Connectivity technology
Wired
Type
Transmitter & Receiver
LED indicators
Link,Power,Video
Product colour
Black
Weight & dimensions
Receiver depth
12.2 cm
Transmitter weight
630 g
Receiver width
18.2 cm
Receiver weight
650 g
Transmitter height
2.87 cm
Receiver height
2.87 cm
Transmitter width
18.2 cm
Transmitter depth
12.2 cm
Receiver
Receiver local video port type
HDMI
Receiver local keyboard/mouse port type
USB
RJ-45 ports quantity (receiver)
1
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 80%
Storage temperature (T-T)
-20 - 60 °C
Power
Power consumption (transmitter) (max)
2.87 W
Power consumption (receiver) (max)
5.37 W
AC adapter output voltage
5 V
