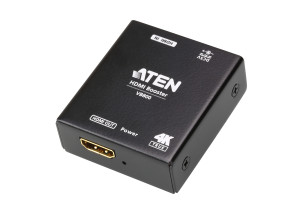

Aten, VB800 HDMI True 4K Booster

Brand
Aten
SKU
10176134
MPN
VB800
Aten VB800 AV extender AV transmitter & receiver Black
Please log in or create an account with Exertis to buy or see full details of our product
The VB800 is a true 4K HDMI booster providing a solution for long distance transmission. The HDMI booster reliably extends true 4K signals and can be cascaded up to 10 levels, guaranteeing ultimate color and image quality. The VB800 is HDMI 2.0 compliant and supports all HDMI enabled devices. The booster can be rack mounted, offering excellent flexibility for managing both work and home settings.

- Superior video quality- True 4k resolutions of 4k x 2k @ 60 Hz (4:4:4) video and standard 1080p (1920 x 1080 @ 60 Hz)
- HDMI (3D, Deep Color, 4K)
- Max. Data Rate 18 Gpbs (6 Gbps Per Lane)
- HDMI and HDCP 2.2 compatible
- 4K resolution when cascaded up to 10 levels
- Input/output max distance for single unit: True 4k resolution up to a distance of 10 meters; 1080p resolution up to a distance of 20 meters*
- A single unit can be powered from the source device
- Supports HDR
- Plug-and-play — No software installation required
- Rack mountable
VB800 HDMI True 4K Booster
Technical Reference
Product Summary
Brand
Aten
SKU
10176134
Manu Part #
VB800
General
Type
AV transmitter & receiver
Maximum transfer distance
20 m
Supported graphics resolutions
1920 x 1080 (HD 1080)
Bandwidth
600 MHz
HDCP
Y
Material
Metal
Plug and Play
Y
Product colour
Black
Ports & interfaces
DC-in jack
Y
HDMI in
1
Number of HDMI outputs
1
Power
Power consumption (typical)
0.99 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Dimensions (WxDxH)
56 x 49 x 170 mm
Weight
90 g
Packaging content
Cables included
AC
Mounting kit
Y
