Aten, VE1812 HDBT Extender with PoH, 4K 100m

Brand
Aten
SKU
10176136
MPN
VE1812
Aten VE1812 AV extender AV transmitter & receiver Black
Please log in or create an account with Exertis to buy or see full details of our product
The VE157 VGA/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes. It extends VGA and audio signals up to 150 meters over a Cat 5e/6 cable and supports wide screen formats while ensuring excellent video quality.\n\nThe VE157 can be easily powered at either the Transmitter or Receiver side using another Cat 5e/6 cable. The VE157’s compact wall plate design does away with bulky cables allowing a neat and convenient installation. Therefore, it is a perfect solution for function rooms, museums and any setting that requires equipment or cabling to be kept from the public’s view.\n\nPackage Contents:\n\n- 1x VE1812 HDMI HDBaseT Transmitter with POH\n- 1x VE1812 HDMI HDBaseT Receiver with POH\n- 1x Power Adapter\n- 1x IR Transmitter\n- 1x IR Receiver\n- 2x RS-232 Terminal Blocks\n- 1x User Instructions

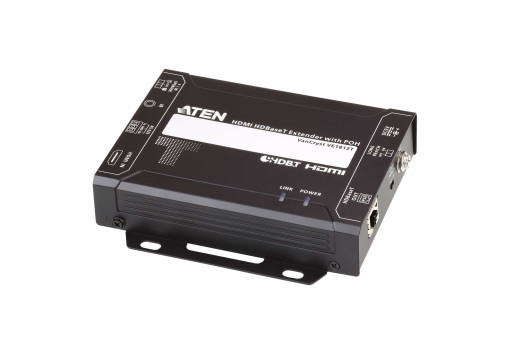

VE1812 HDBT Extender with PoH, 4K 100m
Technical Reference
Product Summary
Brand
Aten
SKU
10176136
Manu Part #
VE1812
Power
Power consumption (transmitter) (max)
4.3 W
Operating voltage (transmitter)
5 V
Operating voltage (receiver)
5 V
External power adapter
Y
Power consumption (receiver) (max)
6.4 W
General
Firmware upgradeable
Y
Material
Metal
Supported video modes
1080p
Supported graphics resolutions
3840 x 2160,4096 x 2160
Cable types supported
Cat5e,Cat6,Cat6a
Impedance
100 Ω
Type
AV transmitter & receiver
LED indicators
Y
Bandwidth
340 MHz
RoHS compliance
Y
Maximum resolution
4096 x 2160 pixels
3D
Y
Consumer Electronics Control (CEC) support
Y
Product colour
Black
Maximum transfer distance
150 m
HDCP
Y
Ports & interfaces

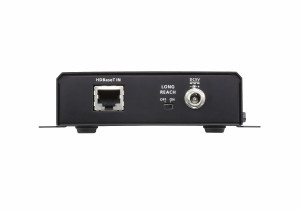

HDBaseT port
Y
Connectivity technology
Wired
DC-in jack
Y

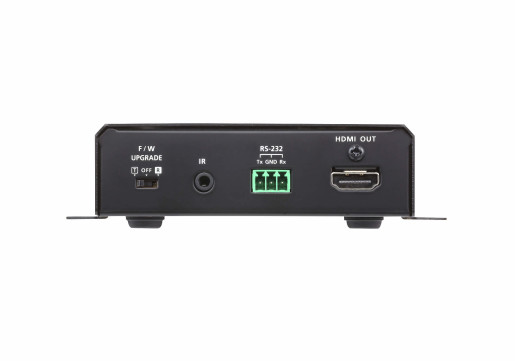

HDMI in
1
Number of HDMI outputs
1
Remote (IR) input
1
RJ-45 input ports
1
Remote (IR) output
1
RJ-45 output ports
1
RS-232 input ports
1
Video out
1
Video in
1
RS-232 output ports
1
Weight & dimensions
Receiver dimensions (W x D x H)
123 x 140.4 x 30 mm
Transmitter dimensions (WxDxH)
123 x 140.4 x 30 mm
Transmitter weight
470 g
Receiver weight
450 g
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Packaging content
Quick start guide
Y
AC adapter included
Y
