Aten, VM0202H 2x2 4K HDMI Matrix Switch

Brand
Aten
SKU
10176145
MPN
VM0202H
Aten VM0202H KVM switch Rack mounting Black
Please log in or create an account with Exertis to buy or see full details of our product
  • Connects 2 HDMI sources to any 2 HDMI displays
  • HDMI (3D, Deep Color, 4k); HDCP 1.4 Compatible
  • Supports computer and video resolutions up to 4K
  • Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
The VM0202H is a 2 X 2 HDMI Matrix Switch that meets HDMI Specification features including 3D, Deep Color up to 12- bit, and data rates up to 10.2 Gbps. Engineered for the future trend of high-definition video switching, the VM0202H supports computer and video signals at resolutions up to 4K.

The VM0202H matrix switch provides high performance routing of 2 HDMI video sources such as HD camcorders, satellite boxes, HD-DVD players, high-definition Blue- ray players, home theater PCs and stand-alone streaming media players to any 2 HDMI displays. The remote control and convenient front panel pushbuttons allow you to efficiently cycle through HDMI source devices and displays, while the front panel LEDs indicate the source device for each display at a glance.
VM0202H 2x2 4K HDMI Matrix Switch
Technical Reference
Product Summary
Brand
Aten
SKU
10176145
Manu Part #
VM0202H
Features
Connects 2 HDMI sources to any 2 HDMI displays
HDMI (3D, Deep Color, 4k); HDCP 1.4 Compatible
Supports computer and video resolutions up to 4K
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Supports long distance transmission at a distance up to 15 meters
Multiple Control Methods- system management via front panel push buttons, IR remote and RS- 232 control
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
EDID Expert™ — Selects optimum EDID settings for smooth power- up, high- quality display and use of the best video resolution across different screens
Supports ATEN’s Lock Pro™ HDMI cable lock for securing HDMI cable connections
All- metal casing
Firmware upgradable
Rack mountable
Design
Product colour
Black
Housing material
Metal
Rack mounting
Y
RoHS compliance
Y
Weight & dimensions
Width
76 mm
Depth
200 mm
Height
42 mm
Weight
580 g
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%

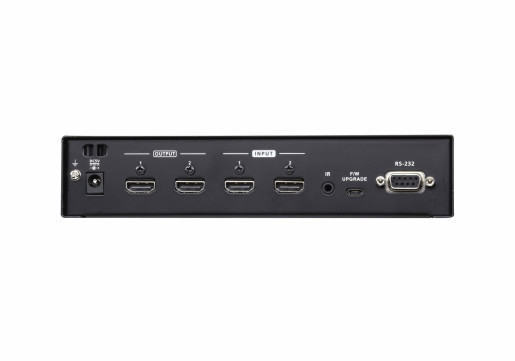

Ports & interfaces
DC-in jack
Y
HDCP
Y
Video port type
HDMI
Keyboard port type
N
Mouse port type
N
HDMI ports quantity
4
Number of computers controlled
2
Display
Built-in display
N
Performance
Maximum resolution
4096 x 2160 pixels
Maximum operating distance
15 m
