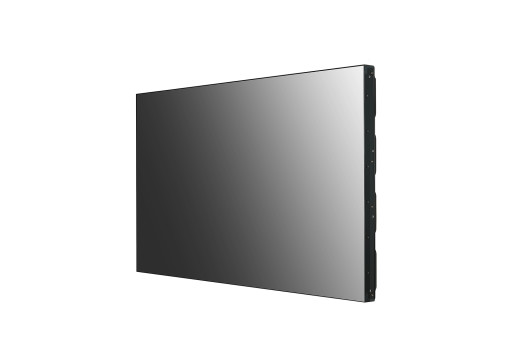

LG, 49VL5G-M Videowall display

Brand
LG
SKU
10355114
MPN
49VL5G-M
LG 49VL5G-M, Full HD, 124.5 cm (49"), 1920 x 1080 pixels, Public Display
Please log in or create an account with Exertis to buy or see full details of our product
  • Brightness(Typ.) : 500 cd/m²
  • Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
  • Depth : 89.7 mm
  • Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
Incredible Immersion with Ultra-Narrow Bezel

ACHIEVING INCREDIBLE IMMERSION
Seamless Large Screens with Ultra- Narrow Bezel

The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.

ACHIEVING INCREDIBLE IMMERSION
Image Gap Reduction

The VL5G-M series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
* The "LG Conventional" refers to displays which do not include an image improvement algorithm.

VIVID AND DYNAMIC PICTURE QUALITY
Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL5G-M series is high enough to display vivid colors throughout the screen with no distortion.
* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

VIVID AND DYNAMIC PICTURE QUALITY
Wide Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL5G-M series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

USER CONVENIENCE White
Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

USER CONVENIENCE
White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the VL5G-M series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

USER CONVENIENCE
User-Friendly Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

USER CONVENIENCE
Intuitive GUI

The GUI (Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a large font for better visibility, which is necessary when users want to control displays from relatively far distances.
49VL5G-M Videowall display
Technical Reference
Product Summary
Brand
LG
SKU
10355114
Manu Part #
49VL5G-M
Features
Brightness(Typ.) : 500 cd/m²
Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
Depth : 89.7 mm
Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
Design
Placement supported
Indoor
Orientation
Landscape/Portrait
Bezel width (side)
1.25 mm
Bezel width (top)
2.25 mm
Bezel width (bottom)
1.25 mm
VESA mounting
Y
Panel mounting interface
600 x 400 mm
Product colour
Black
Display
Display diagonal
124.5 cm (49")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Panel type
IPS
Aspect ratio
16:9
Display brightness
500 cd/m²
Contrast ratio (typical)
1000:1
Response time
8 s
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Ports & interfaces
DVI port
Y
RS-232C
Y
USB port
Y
HDMI ports quantity
2
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
3
USB ports quantity
1
DVI-D ports quantity
1
HDMI input ports quantity
2
DisplayPorts in
2
DisplayPorts out
1
Power
Power consumption (typical)
100 W
Power consumption (max)
120 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%
Weight & dimensions
Width
1077.6 mm
Depth
89.7 mm
Height
607.8 mm
Weight
16.9 kg
Packaging data
Cables included
AC, DisplayPort
Package width
1214 mm
Package depth
263 mm
Package height
778 mm
Package weight
29.3 kg
