Med Grade 1200VA Tower C14 Cable Req
![Med Grade 1200VA Tower C14 Cable Req](https://ik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/caef6bfc/65f2c06d769f2a001214f42d/9177690_0948175732.jpg?tr=w-512,h-512,cm-pad_resize,q-100,pr-true)
![Med Grade 1200VA Tower C14 Cable Req](https://ik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/caef6bfc/65f2c06d769f2a001214f42e/9177690_2643473926.jpg?tr=w-512,h-512,cm-pad_resize,q-100,pr-true)

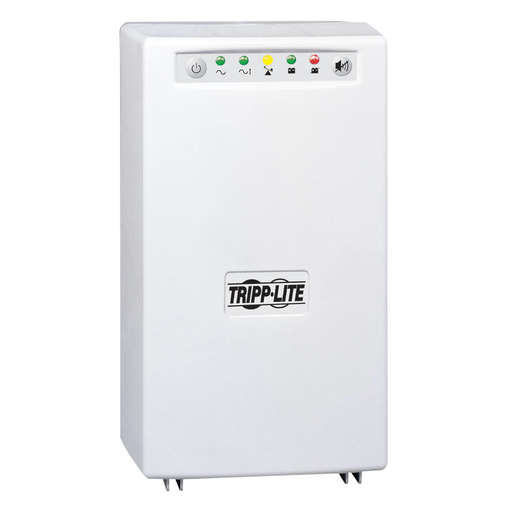

Tripp Lite SMX1200XLHG SmartPro 230V 1kVA 750W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, Expandable Runtime, 1 kVA, 750 W, 230 V, 230 V, 50/60 Hz, 230 V
![Med Grade 1200VA Tower C14 Cable Req](https://ik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/caef6bfc/65f2c06d769f2a001214f42d/9177690_0948175732.jpg?tr=w-96,h-96,cm-pad_resize,q-100,pr-true)
![Med Grade 1200VA Tower C14 Cable Req](https://ik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/caef6bfc/65f2c06d769f2a001214f42e/9177690_2643473926.jpg?tr=w-96,h-96,cm-pad_resize,q-100,pr-true)
![Med Grade 1200VA Tower C14 Cable Req](https://ik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/caef6bfc/65f2c06d769f2a001214f42d/9177690_0948175732.jpg?tr=w-1200,h-1200,cm-pad_resize,q-100,pr-true)
![Med Grade 1200VA Tower C14 Cable Req](https://ik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/caef6bfc/65f2c06d769f2a001214f42e/9177690_2643473926.jpg?tr=w-1200,h-1200,cm-pad_resize,q-100,pr-true)
Brand
Tripp Lite
SKU
10013564
EAN
037332140425
MPN
SMX1200XLHG
Tripp Lite SMX1200XLHG SmartPro 230V 1kVA 750W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, Expandable Runtime, 1 kVA, 750 W, 230 V, 230 V, 50/60 Hz, 230 V
Please log in or create an account with Exertis to buy or see full details of our product
The SMX1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient care vicinities. The 1kVA/750W capacity provides up to 27.5 minutes of runtime for a half load or 11 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout.
Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX1200XLHG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps.
This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15-centimeter (six-inch) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules.
The SMX1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with included PowerAlert software for safe, unattended system shutdown in the event of a prolonged power failure.
This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX1200XLHG in this type of application will void the battery warranty.
Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX1200XLHG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps.
This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15-centimeter (six-inch) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules.
The SMX1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with included PowerAlert software for safe, unattended system shutdown in the event of a prolonged power failure.
This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX1200XLHG in this type of application will void the battery warranty.
![Med Grade 1200VA Tower C14 Cable Req Med Grade 1200VA Tower C14 Cable Req](https://ik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/caef6bfc/65f2c06d769f2a001214f42d/9177690_0948175732.jpg?tr=w-96,h-96,cm-pad_resize,q-100,pr-true)
Technical Reference
Product Summary
Brand
Tripp Lite
SKU
10013564
Manu Part #
SMX1200XLHG
EAN
037332140425
