Tripp Lite, USB-C HDMI Adapter W/ HUB Charging GB

Brand
Tripp Lite
SKU
10157959
MPN
U444-06N-HGU-C

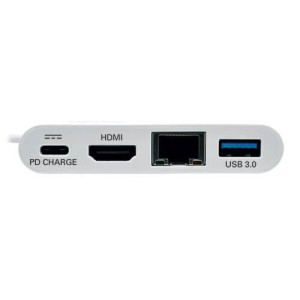

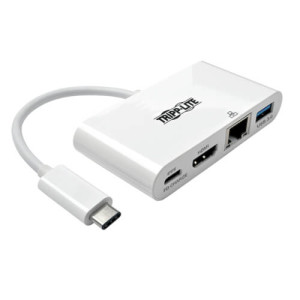

Tripp Lite U444-06N-HGU-C USB-C Multiport Adapter - HDMI, USB 3.0 Port, GbE, 60W PD Charging, HDCP, White
Please log in or create an account with Exertis to buy or see full details of our product
  • Supports USB DisplayPort Alternate Mode for transmitting audio/video
  • Supports HD video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
  • Supports true 10/100/1000 Mbps Ethernet network speeds
  • USB-C PD 3.0 port supports 20V 3A (60W) power output for charging host device
The U444-06N-HGU-C USB 3.1 Gen 1 USB-C to HDMI Adapter expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC’s USB-C or Thunderbolt 3 port. It’s ideal for transmitting digital audio and 1080p video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device, and connecting to a Gigabit Ethernet network—all at the same time.

With a source device that also supports USB DisplayPort Alternate Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.

The plug-and-play U444-06N-HGU-C requires no software, drivers or external power. Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.

To send digital audio and HD video to an HDMI television, projector or monitor, connect the HDMI port to the display using an HDMI cable (sold separately). The HDMI port supports HD video resolutions up to 1920 x 1080 (1080p) at 60 Hz.

The USB-A port accepts USB peripherals, such as a flash drive, mouse, keyboard or printer. It supports fast USB 3.1 Gen 1 data transfer rates up to 5 Gbps and is backward compatible with previous USB generations. The port provides up to 5V/1.5A (7.5W) of fast-charging power to mobile devices.

The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant device (such as a MacBook or Chromebook) the U444-06N-HGU-C is connected to. Connect the device’s AC wall charger to the USB-C PD port, which supports power input up to 20V 3A (60W).

The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.

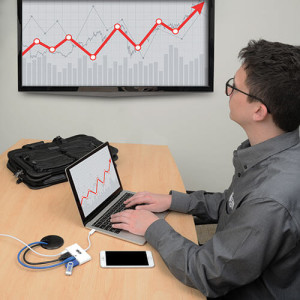

Mini Docking Station Turns Your Device’s USB-C Port into a Multiport Workstation

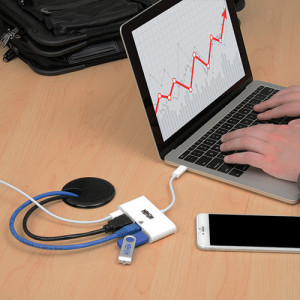

Ideal for transmitting audio/video to a large display, adding a USB peripheral, powering and charging a PD Charging-compliant mobile device, and connecting to a Gigabit Ethernet network simultaneously
Plug-and-play operation with no software, drivers or external power required

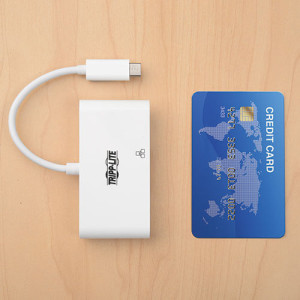

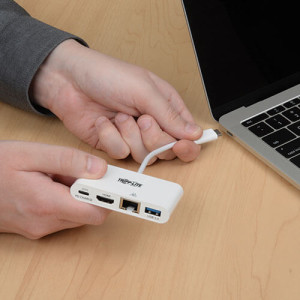

About the size of a credit card for easy carrying in a pocket, purse or laptop bag

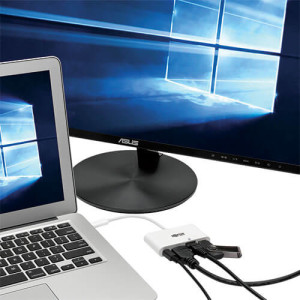

Transmit Crystal-Clear 1080p Video and Digital Audio to HDMI Display
Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
Supports HD video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
Extends video from your primary display to another
Duplicates the same video on 2 displays
Converts a secondary display to your primary display

Connect a USB Peripheral
USB-A port accepts flash drives, mice, keyboards, printers and other USB peripherals
Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
Backward compatible with USB 2.0 and USB 1.1
Provides up to 5V/1.5A (7.5W) of fast-charging power to mobile devices
Host must support USB OTG (On-the-Go)

Charge a Connected Device
USB-C PD port connects to wall charger to power and charge the connected PD Charging-compliant USB-C/Thunderbolt 3 device
Supports power input up to 20V 3A (60W)
USB-C PD port does not support Quick Charge (QC)

Access a Wired Gigabit Ethernet Network
RJ45 port supports true 10/100/1000 Mbps network speeds
Recommended for a faster wired network connection or getting online when no Wi-Fi is available

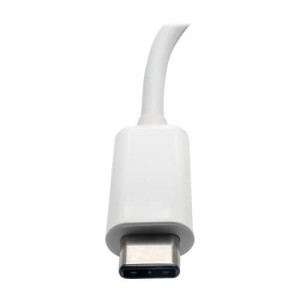

Built-In Cable with Reversible USB-C Connector
Fumble-free reversible USB-C plug connects in either direction for quick connection every time
USB-C HDMI Adapter W/ HUB Charging GB
Technical Reference
Product Summary
Brand
Tripp Lite
SKU
10157959
Manu Part #
U444-06N-HGU-C
Features
Supports USB DisplayPort Alternate Mode for transmitting audio/video
Supports HD video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
Supports true 10/100/1000 Mbps Ethernet network speeds
USB-C PD 3.0 port supports 20V 3A (60W) power output for charging host device
Plug-and-play operation with no software required for easy, immediate installation
General
Power source
USB
Connector 1
USB Type-C
Connector 2
USB Type-C + USB Type-A + HDMI
Connector 1 gender
Male
Connector 2 gender
Female
Maximum resolution
1920 x 1080 pixels
Supported graphics resolutions
1920 x 1080 (HD 1080)
Supported video modes
1080p
Data transfer rate
5 Gbit/s
Bandwidth
100 MB/s
Product colour
White
Plug and Play
Y
Country of origin
Vietnam
Sustainability
Sustainability certificates
RoHS
Packaging data
Quantity per pack
1 pc(s)
Package width
140 mm
Package depth
100.1 mm
Package height
23.1 mm
Package weight
80 g
Manual
Y
Logistics data
Master (outer) case width
29.5 cm
Master (outer) case length
13.5 cm
Master (outer) case height
12 cm
Master (outer) case gross weight
710 g
Products per master (outer) case
10 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332193947
