Startech, 5.25in Trayless Mobile Rack for 3.5in HD

Brand
Startech
SKU
10010473
MPN
HSB100SATBK

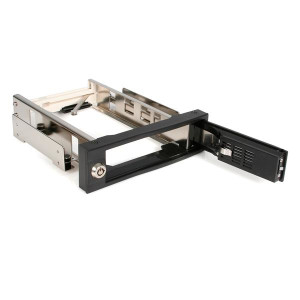

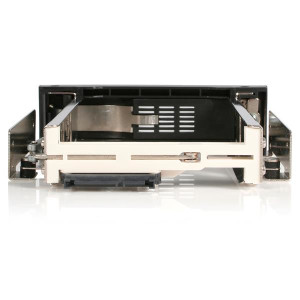

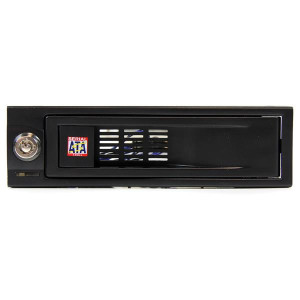

StarTech.com 5.25in Trayless Hot Swap Mobile Rack for 3.5in Hard Drive
Please log in or create an account with Exertis to buy or see full details of our product
Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay

This 3.5in SATA hard drive hot-swap bay allows you to install a 3.5in SATA drive in an available/unused 5.25in drive bay. To remove the drive, it's as simple as opening the front panel door; to re-insert a drive, simply insert the drive (connector first) until the door closes.

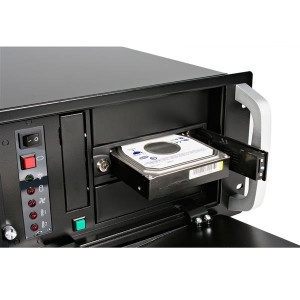

The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.

With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.

Designed to provide a durable and reliable operating experience, the mobile rack features a 50,000+ insertion rating and is backed by StarTech.com's 2-year warranty.

The StarTech.com Advantage

- Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller
- Quickly and easily install or remove hard drives without having to open the chassis with the innovative trayless design
- Rubber shock absorbers, a solid aluminum construction and 50,000+ insertion rating ensures longevity from both the drives and bay
5.25in Trayless Mobile Rack for 3.5in HD
Technical Reference
Product Summary
Brand
Startech
SKU
10010473
Manu Part #
HSB100SATBK
Weight & dimensions
Width
149 mm
Weight
261 g
Depth
184 mm
Height
42 mm
General
Product colour
Black
Type
Bezel panel
Certification
CE, FCC, REACH
Material
Aluminum, PU plastic
RoHS compliance
Y
LED indicators
Activity,Power
HDD size
3.5"
Key lock
Y
Size (imperial)
13.3 cm (5.25")
HDD interface
Serial ATA,Serial ATA II,Serial ATA III
Number of HDDs supported
1
Number of cycles
50000
Packaging data
Package weight
366 g
Package width
206 mm
Package height
51 mm
Package depth
159 mm
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 85%
Storage relative humidity (H-H)
5 - 95%

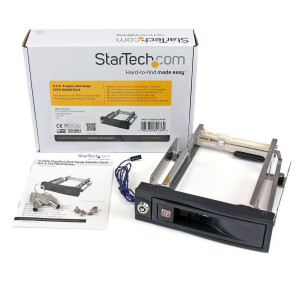

Packaging content
Manual
Y
Screws included
Y
Number of lock keys included
2 pc(s)
