Startech, SuperSpeed USB 3.0 to SATA HD Docking St

Brand
Startech
SKU
10011713
MPN
SATDOCKU3S

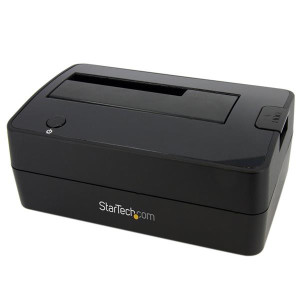

StarTech.com USB 3.0 to SATA Hard Drive Docking Station for 2.5/3.5 HDD
Please log in or create an account with Exertis to buy or see full details of our product

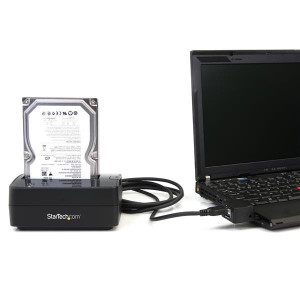

Enable fast, swappable access to your 2.5in or 3.5in SATA hard drives, through USB 3.0

The SATDOCKU3S USB 3.0 Hard Drive Docking Station delivers full, instant access to any 2.5in or 3.5in SATA (SATA, SATA II, SATA III) hard drive (HDD) or solid state drive (SSD), without having to mount the drive in a computer or install it in an external enclosure. Large capacity drives (tested with up to 4TB 3.5" and 1TB 2.5" drives) can be used to greatly enhance your computer's storage/backup capabilities.

Connected to the host computer through a single USB 3.0 SuperSpeed or USB 2.0 connection, the hard drive docking station provides a convenient, plug-and-play storage solution that delivers instant access to the hard drive without requiring a reboot.

Relying on the outstanding data throughput support of USB 3.0, the HDD docking station is capable of transfer speeds of up to 5Gbps, making it the fastest way to access data from an external drive. Double the value of this hard drive docking station, using a SATA to IDE hard drive adapter (SAT2IDEADP), which enables you to use any 2.5 or 3.5in IDE hard drive in a SATA hard drive dock slot.

To ensure compatibility with your computer system, the SATDOCKU3S supports all of the leading operating system platforms, including: Microsoft Windows, Apple OSX, Linux, and Google Chrome OS.

The StarTech.com Advantage

- SuperSpeed USB 3.0 technology provides fast access for external storage, while still being backwards compatible with USB 2.0
- A top slot-loading design and unique drive ejection mechanism provides quick and easy access to the data without having to install drives into an enclosure or tray
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
SuperSpeed USB 3.0 to SATA HD Docking St
Technical Reference
Product Summary
Brand
Startech
SKU
10011713
Manu Part #
SATDOCKU3S
Weight & dimensions
Width
145 mm
Weight
400 g
Depth
93 mm
Height
65 mm
General
Product colour
Black
Certification
CE, FCC
Material
Plastic
Plug and Play
Y
RoHS compliance
Y
Maximum data transfer rate
5 Gbit/s
LED indicators
Activity,Power
Hot-swap
Y
Chipset
ASMedia - ASM1053
UASP support
N
Packaging data
Package weight
728 g
Package width
162 mm
Package height
91 mm
Package depth
172 mm
Operational conditions
Operating temperature (T-T)
5 - 80 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
8 - 80%
Software
Windows operating systems supported
Windows 2000,Windows 2000 Professional,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Linux operating systems supported
Y
Mac operating systems supported
Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Power
AC input voltage
110-240 V
Output current
2.5 A
Output voltage
12 V
Power plug type
Type M

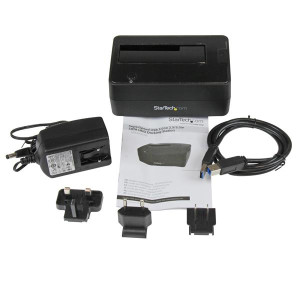

Packaging content
Cables included
USB
Manual
Y
AC adapter included
Y

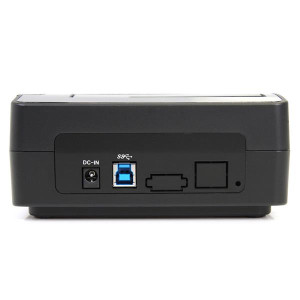

Ports & interfaces
DC-in jack
Y
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hard drive
Storage media type
HDD,SSD
Storage drive sizes supported
2.5,3.5"
Storage drive interface
Serial ATA,Serial ATA II,Serial ATA III
Maximum storage capacity
4 TB
Number of storage drives supported
1
Cooling
Built-in fan
N
