LG, SM3G 22" SOC LFD

Brand
LG
SKU
10286824
MPN
22SM3G-B.AEK, 22SM3G

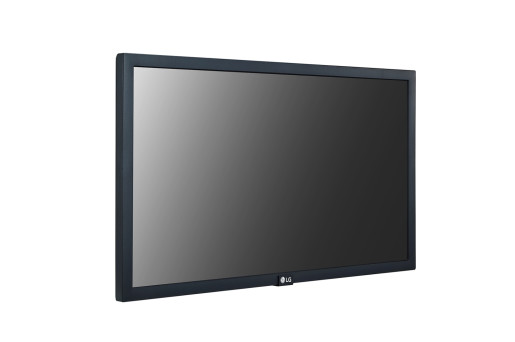

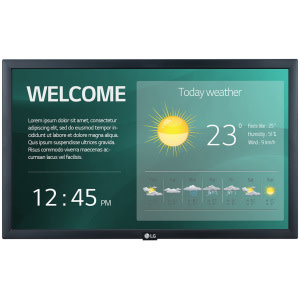

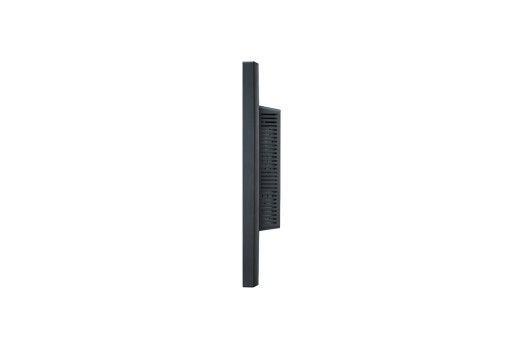

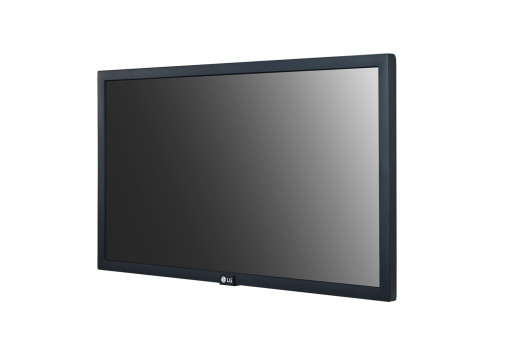

LG 22SM3G-B signage display 54.6 cm (21.5") IPS Full HD Digital signage flat panel Black Built-in processor
Please log in or create an account with Exertis to buy or see full details of our product
  • Brightness(Typ.) : 250 cd/m²
  • Bezel : 16.3mm
  • Depth : 53.8mm
  • Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio
22" Signage with More Utility for Commercial Space
22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.

High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.

A Wide Range of Interfaces
Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.

USB Plug & Play
22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.

Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

Real-time Care Service with LG Signage365Care
The maintenance gets easier and faster with the optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.
SM3G 22" SOC LFD
Technical Reference
Product Summary
Brand
LG
SKU
10286824
Manu Part #
22SM3G-B.AEK, 22SM3G
Features
Brightness(Typ.) : 250 cd/m²
Bezel : 16.3mm
Depth : 53.8mm
Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio
USB Plug & Play, Built-in Wi-Fi
Design
Product colour
Black
VESA mounting
Y
Panel mounting interface
100 x 100 mm
Orientation
Horizontal
Design
Digital signage flat panel
Weight & dimensions
Width
510.3 mm
Depth
53.8 mm
Weight
3.34 kg
Height
302.1 mm
Packaging data
Package weight
3.5 kg
Package width
565 mm
Package depth
103 mm
Package height
357 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 80%
Storage relative humidity (H-H)
5 - 85%
Display
Display diagonal
54.6 cm (21.5")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9
Touchscreen
N
Contrast ratio (typical)
1000:1
Display brightness
250 cd/m²
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display type
IPS
Display diagonal (metric)
55.88 cm
Contrast ratio (dynamic)
400000:1
Power
AC input voltage
100 - 240 V
Power consumption (typical)
33 W
AC input frequency
50/60 Hz
Power consumption (standby)
30 W
Power consumption (off)
0.5 W
Power consumption (sleep)
1 W
Heat dissipation
7.89 BTU/h
Packaging content
Cables included
AC
Batteries included
Y
Handheld remote control
Y
Mounting kit
Y
Ports & interfaces
DVI port
N
USB port
Y
Wi-Fi
Y
Ethernet LAN
Y
RS-232C
Y
RS-232 interface
Y
HDMI ports quantity
2
Ethernet LAN (RJ-45) ports
1
USB ports quantity
1
USB version
2
Audio (L/R) in
1
Certificates
Certification
CB, NRTL, EMC, FCC Class "A", CE, ErP
Audio
RMS rated power
2 W
Built-in speaker(s)
Y
Number of built-in speakers
2
Performance
Purpose
Universal
Operating hours (hours/days)
16/7
Computer system
Computer system
N
Internal memory
4 GB
Built-in processor
Y
Processor cores
4
