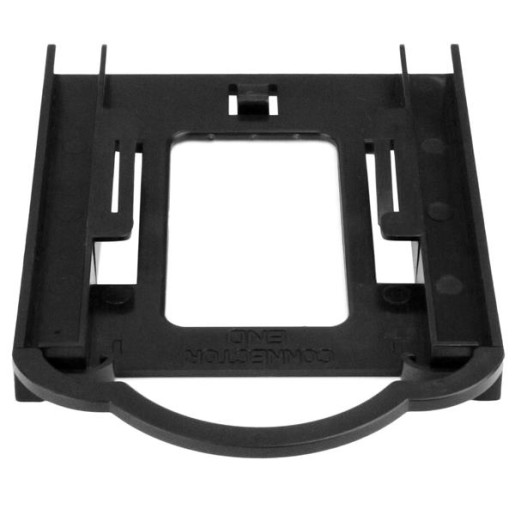

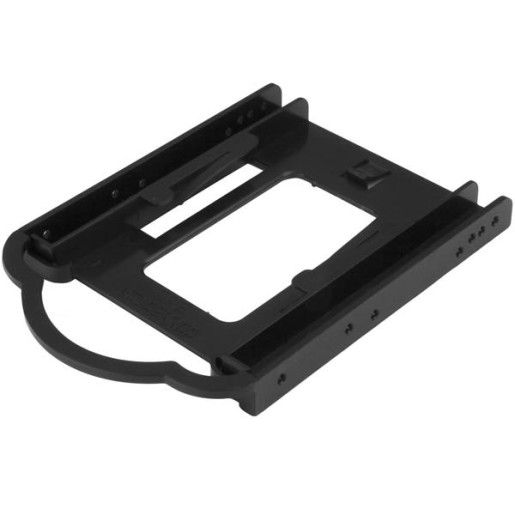

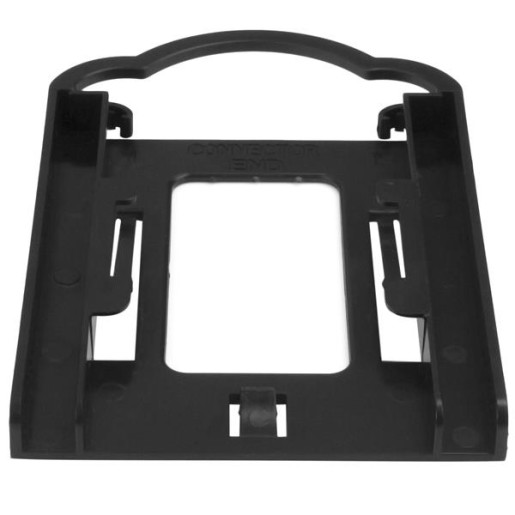

Startech, 2.5" SSD Mount - For 3.5" Bay - 5 Pack

Brand
Startech
SKU
10277450
MPN
BRACKET125PTP
StarTech.com 5 Pack - 2.5” SDD/HDD Mounting Bracket for 3.5 Drive Bay, 8.89 cm (3.5"), Carrier panel, 2.5", Serial ATA,Serial ATA II,Serial ATA III,Serial Attached SCSI (SAS), 7,9.5 mm, Black, External/Portable Solid-State Drive
Please log in or create an account with Exertis to buy or see full details of our product
  • Install one 2.5” SSD or HDD into a single 3.5” bay
  • Tool-less drive and bay installation
  • Supports drives 7 mm or 9.5 mm in height
  • Compatible with most 2.5"" SSD/HDD drives including: IDE, SAS, SATA, U.2 and more
2.5" Hard Drive Mount | Tool-less Installation

The 2.5” SDD / HDD Mounting Bracket for 3.5 Drive Bay now comes in a convenient 5-pack. This mounting bracket lets you quickly install a 2.5" SSD or HDD into a single 3.5" bay in a desktop PC or server, with no tools required. The tool-less mounting bracket supports a 2.5" solid-state drive or hard drive from 7 mm to 9.5 mm in height.

Save Time with Easy, Tool-less Drive Installation

The mounting bracket’s tool-less design makes it fast and easy to install a 2.5" drive in a computer or server, without the need for additional hardware or tools. It’s ideal for system administrators and integrators who are building or upgrading a computing solution for a wide range of businesses and organizations, including schools and hospitals, saving valuable time and effort on installation projects.

Designed for Trouble-free Use

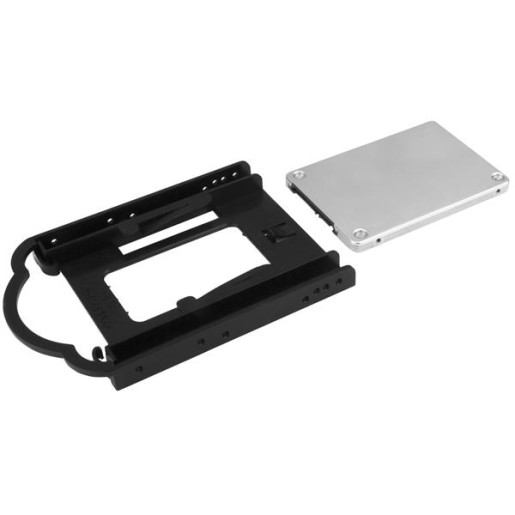

The lightweight mounting bracket is designed for trouble-free, reliable performance. To install a drive, you simply secure it into the mounting bracket, without using tools. Then, you put the bracket into a 3.5" drive bay in your computer and the bracket holds the drive in place using the tool-less plastic pegs.

The BRACKET125PTP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Install one 2.5” SSD or HDD into a single 3.5” bay
- Tool-less drive and bay installation
- Supports drives 7 mm or 9.5 mm in height
2.5" SSD Mount - For 3.5" Bay - 5 Pack
Technical Reference
Product Summary
Brand
Startech
SKU
10277450
Manu Part #
BRACKET125PTP
Features
Install one 2.5” SSD or HDD into a single 3.5” bay
Tool-less drive and bay installation
Supports drives 7 mm or 9.5 mm in height
Compatible with most 2.5"" SSD/HDD drives including: IDE, SAS, SATA, U.2 and more
General
Supported storage drive heights
7,9.5 mm
HDD interface
Serial ATA,Serial ATA II,Serial ATA III,Serial Attached SCSI (SAS)
Type
Carrier panel
Product colour
Black
Certification
REACH, CE
HDD size
2.5"
Size (imperial)
8.89 cm (3.5")
RoHS compliance
Y
Material
Plastic
Packaging data
Package weight
40 g
Package dimensions (WxDxH)
155 x 95 x 110 mm
Weight & dimensions
Height
13 mm
Depth
150 mm
Weight
33 g
Width
102 mm
